Available Now! CWM25-00-30V24

Product image is representative only, please verify specifications.

Available Now! (8 in stock)
Weg

CWM25-00-30V24

Alt: 10046466

$50.74

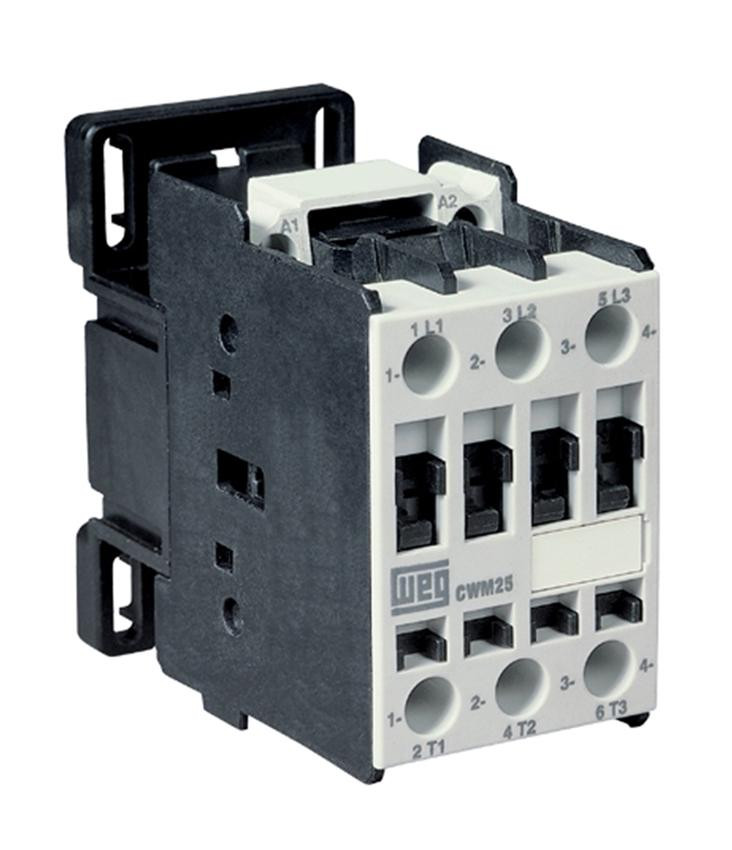

Contactor, IEC, 25 Amps, 208-240VAC, 3-Pole, UL508, Use RW Overload Relay

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Control voltage: 180-208V 50Hz/208-240V 60Hz
  • Rated current In - AC-3 (Ue ≤ 440 V): 25 A
  • Main contact: 3 NO
  • Rated operational voltage Ue - IEC 60947-4-1: 690 V
  • Rated operational voltage Ue - UL/CSA: 600 V

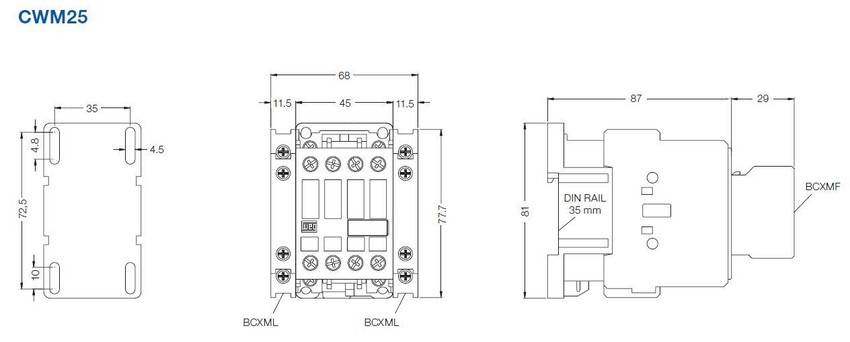

  • Height: 81 mm (3.19 in)
  • Width: 45 mm (1.77 in)
  • Depth: 87 mm (3.43 in)
  • Panel mountable or 35mm DIN Rail up to the CWM105 Series
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
Image coming soon

Weg

CWM25-00-20V18

IEC Contactor, 25 Amp (25A), 2NO Main Contact, 110-130VAC, 50Hz/60Hz-DC, Screw Terminal, IP20 Main/Control Circuit, 81 x 45 x 87mm (3.19 x 1.77 x 3.43") (HWD)

$42.57

Weg

CWM25-00-30V04

Contactor, IEC, 25 Amps, 24VAC, 3-Pole, UL508, Use RW Overload Relay

$50.74
Available Now!

Weg

CWM25-00-30V47

Contactor, IEC, 25 Amps, 480VAC, 3-Pole, UL508, Use RW Overload Relay

$50.74
Available Now!

Weg

CWM25-00-30V18

Contactor, IEC, 25 Amps, 120VAC, 3-Pole, UL508, Use RW Overload Relay

$50.74
Available Now!

Weg

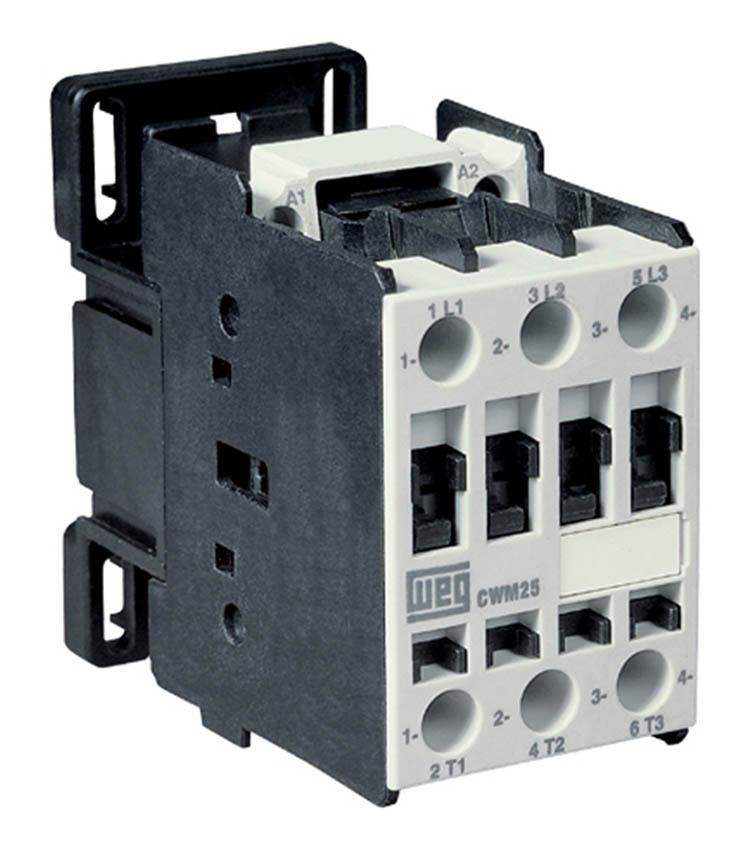

CWM25-00-20V24

Contactor, IEC, 25 Amps, 2NO, 180-208V 50Hz, 208-240V 60Hz, Screw Terminal, 81 x 45 x 87mm, 3.19 x 1.77 x 3.43" (HWD), IP20

$42.57

Weg

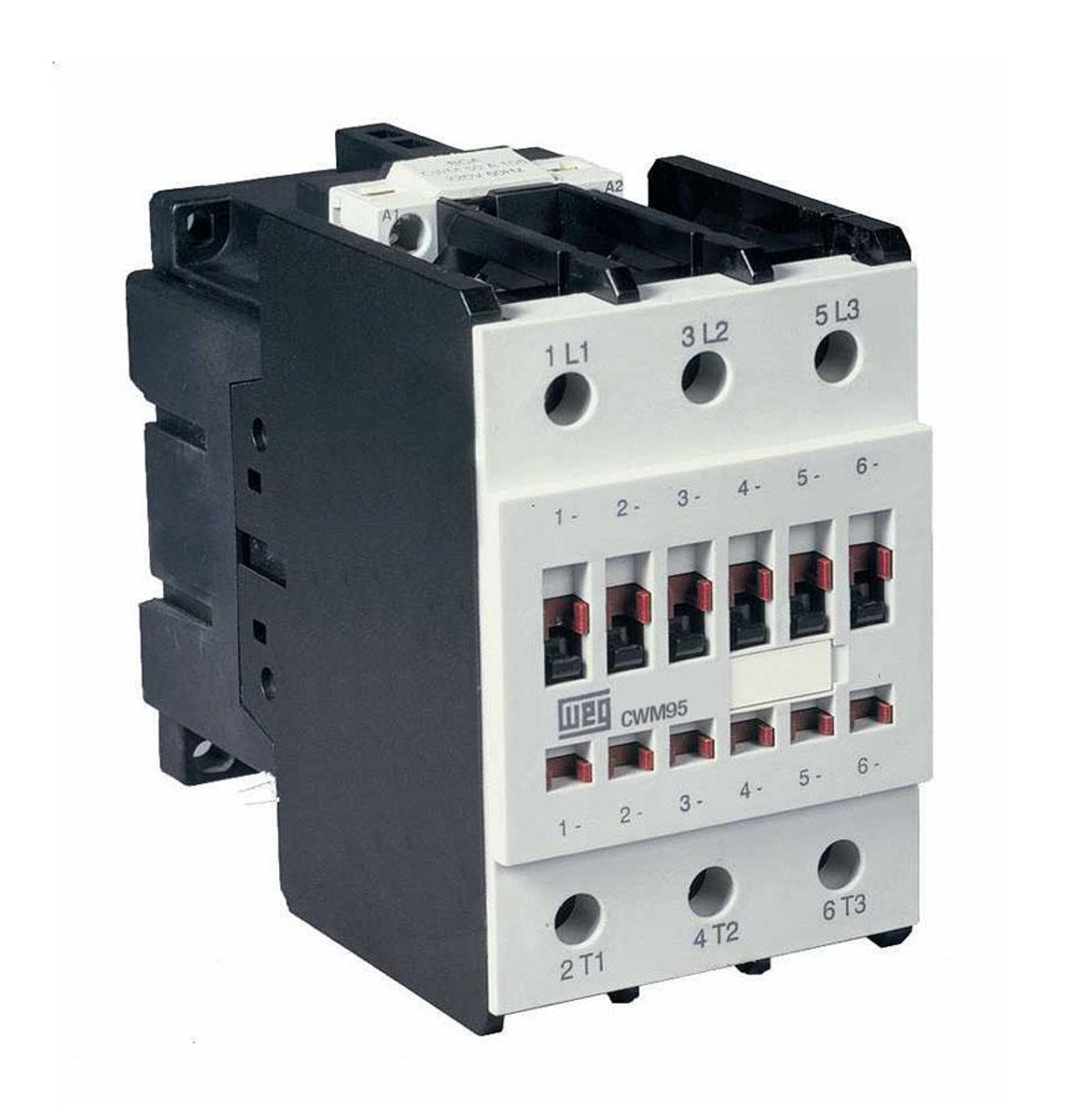

CWM95-00-30V24
