VFD550C23A-00
Alt: This is the Recommended Replacement for VFD550C23A
$4,564.35

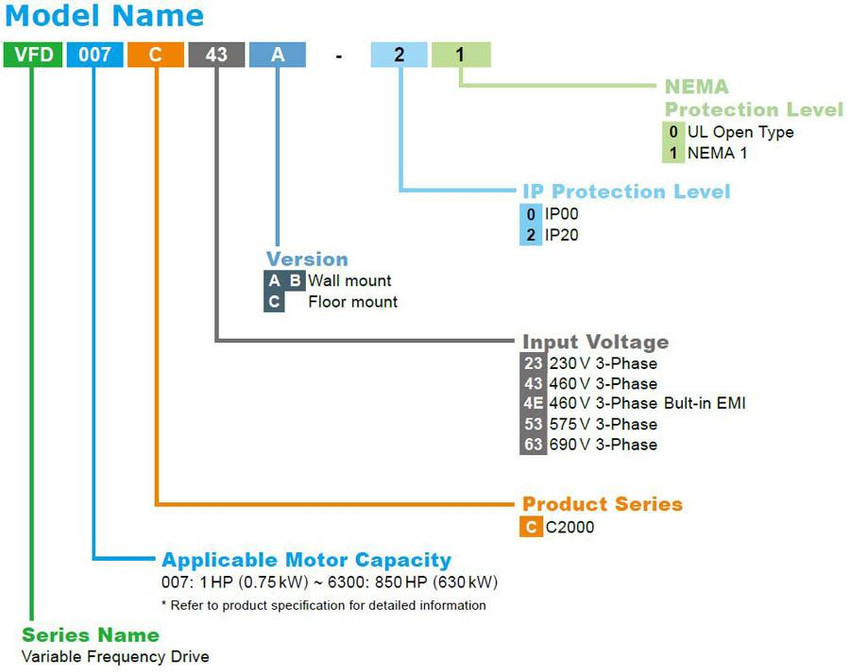

VFD, C2000, 75hp, 230V, FOC & TRQ Drive w/o Conduit Box for UL Open, IP00
- Weight:
- 147.40 LBS
- Minimum Purchase:
- 1 unit
Description
Delta has a full line of products in their industrial automation division. This include drives, power supplies and HMI as well as timers, temperature controllers and networking solutions.
Delta Industrial Automation is part of Delta Electronics.
Series Features Include:
- Heavy-duty overload capability up to 150% / 60 sec. and 180% / 3 sec. at rated current; sensorless vector control of IM / PM / SynRM motors
- IP55 fans, efficient heat sink and Class 3C3 conformal PCB coating
- Built-in PLC (10k steps) and remote I/O integration for CANopen / Modbus master stations
- Control Functions: Torque control, Speed / torque control switching, Feed forward control, Zero-servo control,
Momentary power loss ride thru, Speed search, Over-torque detection, Torque Limit, 16-step speed (Max.),
Accel / decel time switch, S-curve accel / decel, 3-wire sequence, Auto-Tuning (rotational, stationary), Dwell,
Slip compensation, Torque compensation, JOG frequency, Fault restart, Frequency upper / lower limit settings, DC injection braking at start / stop, High slip braking, Parameter copy PID control (with sleep function), Energy saving control, MODOBUS communication (RS-485 RJ45, Max. 115.2 kbps) - Optional Communication cards: EtherCAT, EtherNet/IP, DeviceNet, PROFINET, PROFIBUS DP, Modbus TCP, CANopen
- Starting Torque: Reach up to 150% or above at 0.5 Hz. Under FOC+PG mode, starting torque can reach 150% at 0 Hz
- V/F Curve: 4-point adjustable V/F curve and square curve
- Speed Response Ability: 5 Hz (vector control can reach up to 40 Hz)
- Over-temperature Protection: Built-in temperature sensor
- Stall Prevention: Stall prevention during acceleration, deceleration and running independently
- Restart After Instantaneous Power Failure: Parameter setting up to 20 seconds
Grounding Leakage Current Protection: Leakage current is higher than 50% of rated current of the AC motor drive - Short-circuit Current Rating (SCCR): Per UL508C, the drive is suitable for use on a circuit capable of delivering not more than 100kA symmetrical amperes (rms) when protected by fuses given in the fuse table
Technical Information:
- Delta Vector Control Drive C2000+ Series Catalog
- Delta Vector Control Drive C2000 Series Dimensional Drawings
- Delta Vector Control Drive C2000+ Series User Manual
- Delta High Frequency Motor Drive C2000-HS Series Catalog
- Delta High Frequency Motor Drive C2000-HS User Manual
- Delta Application Manual for C2000, CP2000, CH2000 Series AC Drives
Options Technical Information:
- Delta Industrial EMC Standard Installation Guide
- Delta VFDB Series Braking Modules Instruction Sheet
- Delta VFDB4110/4160/4185 Series Braking Modules Instruction Sheet
- Delta VFDB6055/6110/6160/6200 Series Braking Modules Instruction Sheet
- Delta Industrial Zero Phase Reactor Instruction Sheet
- Delta Industrial RS485 Splitter VFD-CMD 04/08 Instruction Sheet
- Delta Industrial IFD 6500 USB/RS-485 Communication Interface Instruction Sheet
- Delta Industrial CMC-EIP01 EtherNet/IP Communication Card Instruction Sheet
- Delta Industrial EtherNet/IP Operation Manual
- Delta Industrial CMC-DN01 DeviceNet Communication Card Instruction Sheet
- Delta Industrial CMC-DN01 DeviceNet Communication Card Operation Manual
- Delta Industrial CMC-EC01 EtherCAT Communication Card Operation Manual
- Delta Industrial CMC-MOD01 Modbus TCP Communication Card Instruction Sheet
- Delta Industrial CMC-MOD01 Modbus TCP Communication Card Operation Manual
- Delta Industrial CMC-PD01 PROFIBUS DP Slave Communication Card Instruction Sheet
- Delta Industrial CMC-PD01 PROFIBUS DP Slave Communication Card Operation Manual
- Delta Industrial CMC-PN01 PROFINET Communication Card Operation Manual
- Delta Industrial Suggestions and Error Corrections for Standard AC Motor Drives
- Delta Industrial AC Motor Drive Standard Product Label Change Guide
Learn more about Delta and VFDs here!
