Available Now! ODE-3-110070-1F1X-01
Available Now! (2 in stock)

ODE-3-110070-1F1X-01

Alt: Advertised Price Limited to Our Stock Only! Use with PSC or SP Single Phase Motors Only

$484.00

VFD, 0.5hp, 7A, 110-115V, Single Phase Input/Output, Keypad, EMC Filter, NEMA 4X, IP66, General Purpose AC Drive, OPTIDRIVE E3 Series, Simple Setup with 14 Basic Parameters and Functions, For Use with PSC or Shaded Pole Single Phase Motors

Weight:
9.14 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
This drive can be used with PSC or shaded pole single phase motors only.
Description

The Optidrive E3 from Invertek is a general purpose sensorless vector drive that is great for most motor types.

E3 series, 3 phase rated drives (with the exception of Size 4 IP66/NEMA 4X models) can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.

Invertek offers single phase input drives up to 10 hp, these drives are not derated.

  • This is the most popular, general purpose drive from Invertek
  • Available from 0.5 to 50hp
  • Single and 3 phase input, 110 to 480V models
    • Single phase input models available up to 10hp!
  • Choose from IP20 or IP66/NEMA 4X models
  • Switch between Industrial or Pump & Fan modes
  • Simple set up – just 14 basic parameters and functions
  • Includes models for single phase motors
  • Can be used with all motor types; induction, AC permanent magnet, brushless DC, line start PM, synchronous reluctance
  • Internal Category C1 EMC filter
  • 2 year warranty

IP20 (part #'s ending in 2):

  • Available up to 50hp, no disconnect switch
  • Indoor rated
  • 3 phase models can be derated by 50% for use in single phase power applications

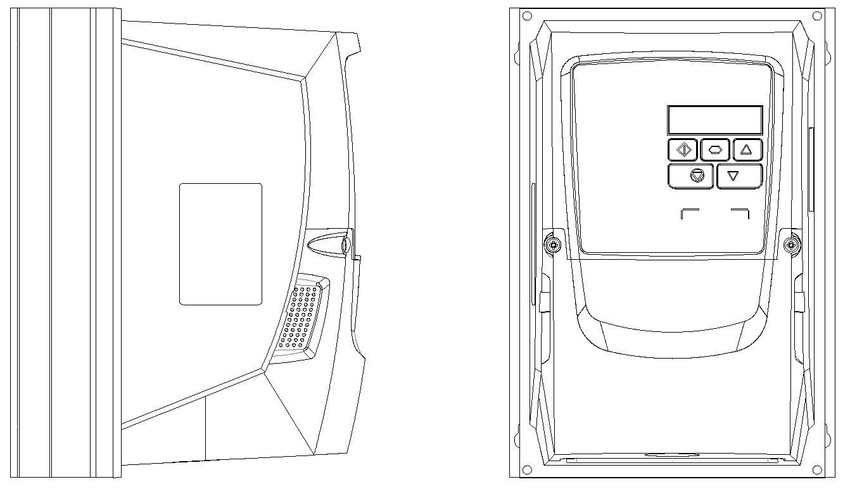

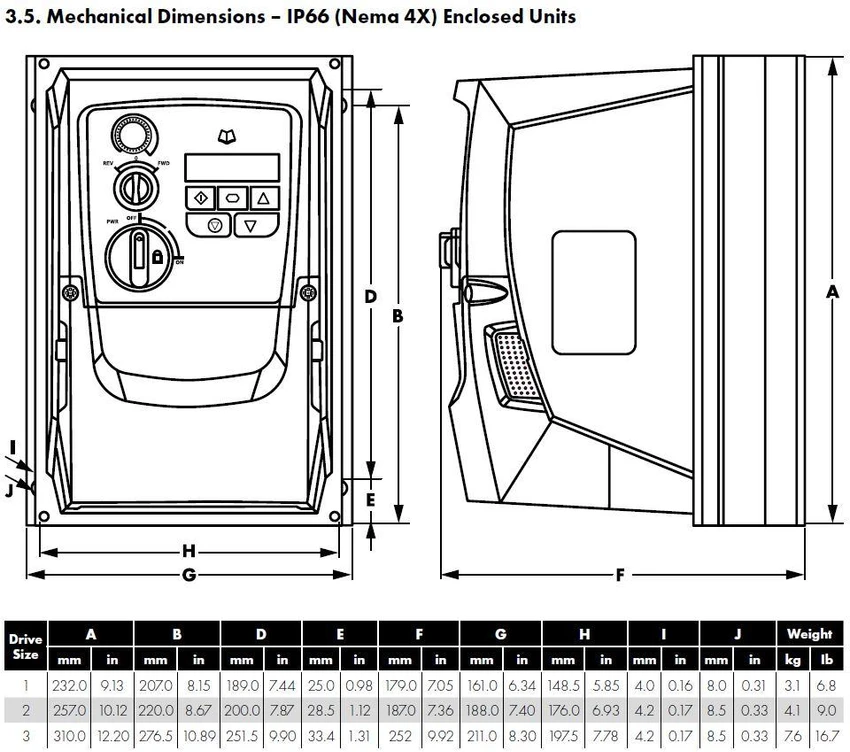

IP66/NEMA 4X (part #'s ending in A or B):

  • Ending in B is Outdoor, with disconnect switch
  • Ending in A is Outdoor, no disconnect switch
  • Outdoor rated, dust-tight and washdown ready!
  • Please note: For IP66/NEMA 4X three phase input models, chassis size 4 is not capable of being derated for use in applications supplying single phase power to these units.
    • Size 4 chassis use film capacitors which prohibit single phase operation.

Single Phase Input/Output:

  • Available from 0.5 to 1,5hp
  • For use on permanent split capacitor (PSC) or shaded pole induction motors
  • These drives end in -01
  • Higher horsepower 3 phase models can be derated for use in single phase power applications.
  • Switch between industrial mode, pump mode and fan mode
  • 14 parameter basic setup, default settings suitable for most applications
  • Internal Category C1 EMC filter



Features Include:

  • Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer
  • Output Current: 7 A
  • Digital Inputs: 8 – 30 Volt DC, internal or external supply | Response time < 4ms
  • Output Frequency: 0 – 500Hz, 0.1Hz resolution
  • Acceleration Time: 0.01 - 600 seconds
  • Keypad: Built-in keypad as standard, optional remote mountable keypad
  • Display: 7 Segment LED
  • PC: OptiTools Studio
  • Small mechanical envelope
  • Rugged industrial operation
  • Fast setup, and simple operation with 14 basic parameters
  • Unique motor control strategy optimized for single phase motors
  • Motor current and rpm indication
  • Built in PI control, EMC filter (C1) & brake chopper
  • Application macros for industrial, fan and pump operation
  • Bluetooth connectivity

Control Method:

  • Sensorless Vector Speed Control
  • PM Vector Control
  • BLDC Control
  • Synchronous Reluctance

Technical Information:

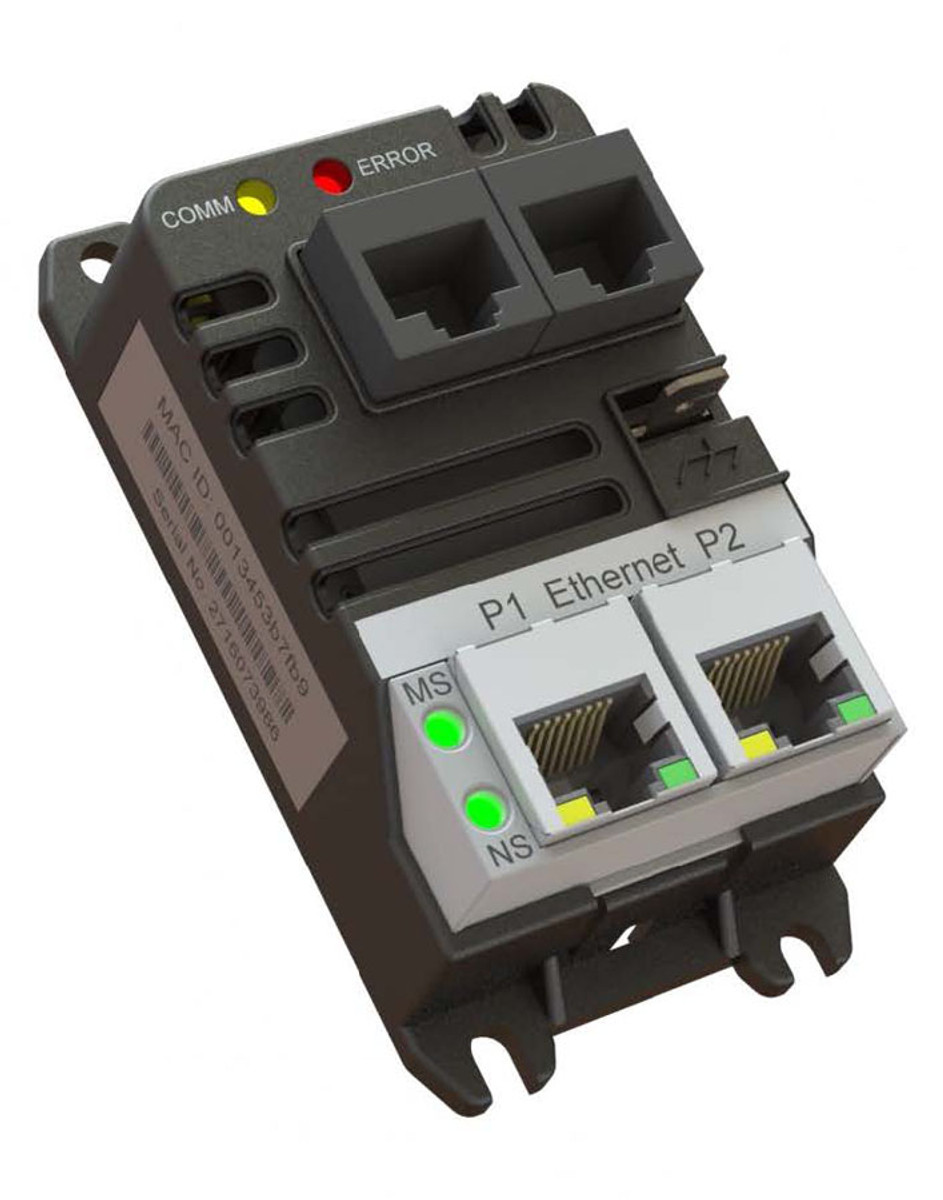

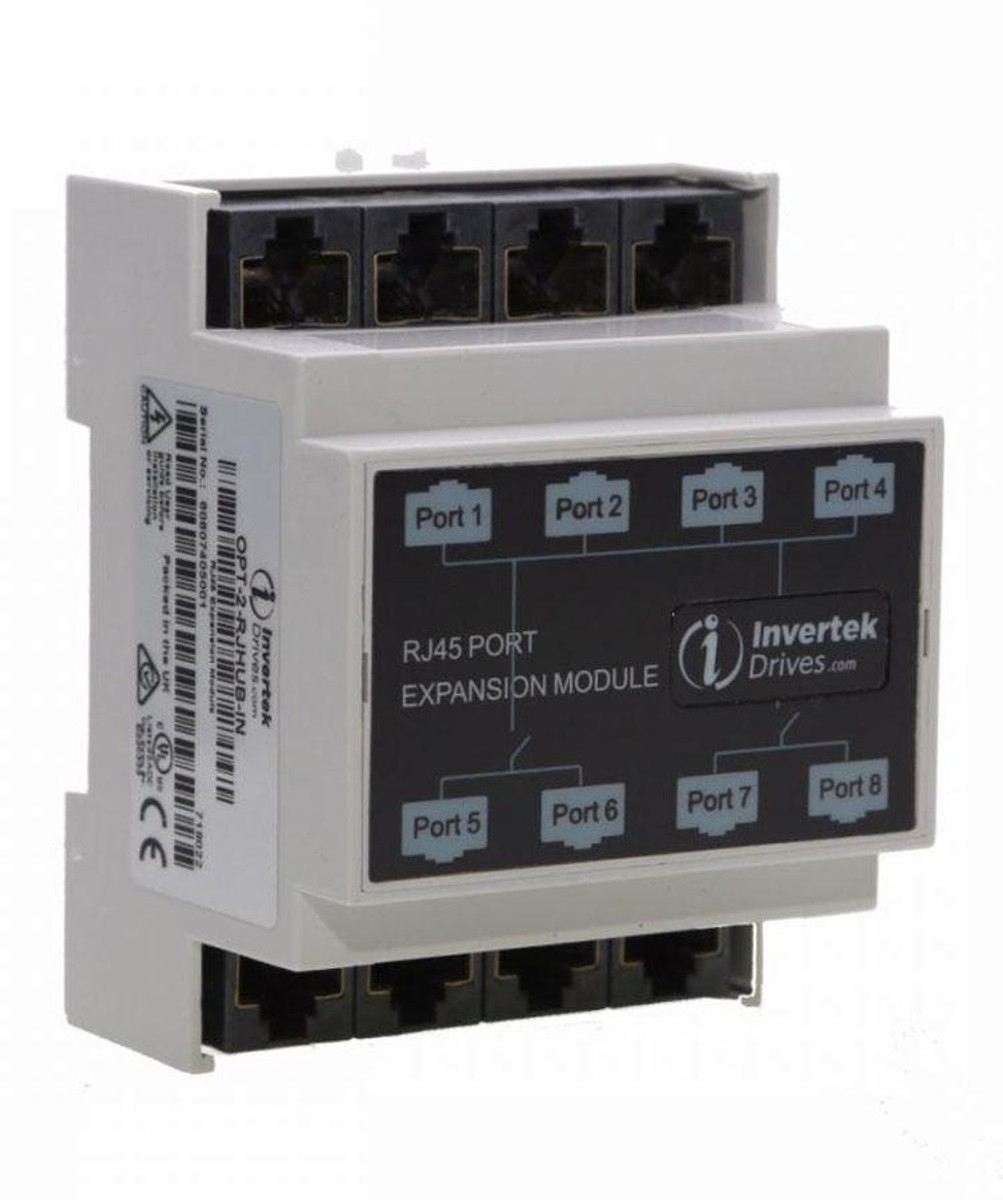

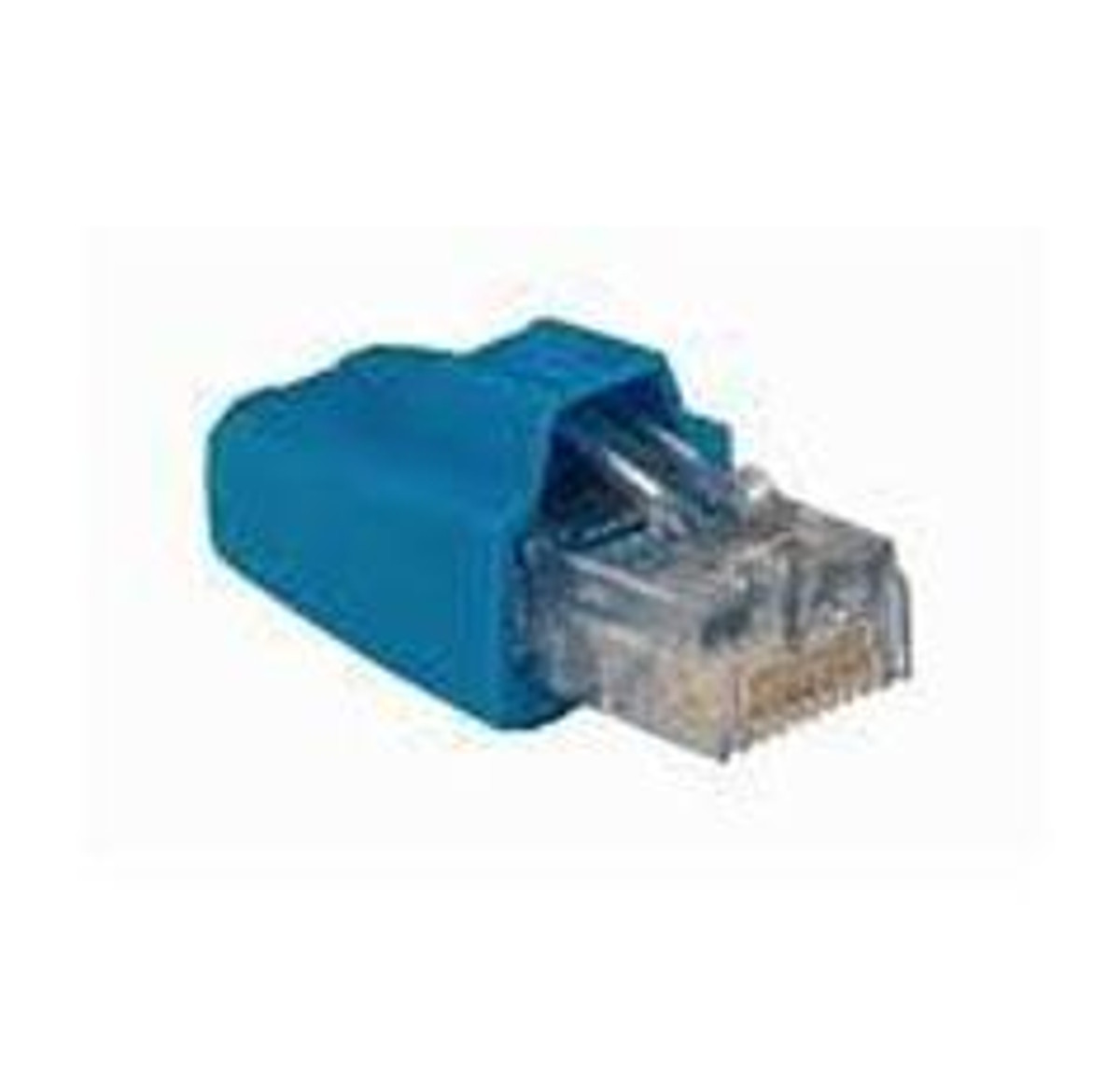

Options and Communication Cards:

Application Notes:
