Weg
CWM250-22-30E02
Contactor, IEC, 250 Amps, 2NO/2NC, 24-28VAC/DC, 3-Pole, UL508, Use RW Overload Relay
$969.60
We pause this Memorial Day to honor and remember those that gave their lives in service to our country.
Our offices will close at 1 p.m. on Friday, May 22nd and reopen on Tuesday, May 26th.
Product image is representative only, please verify specifications.

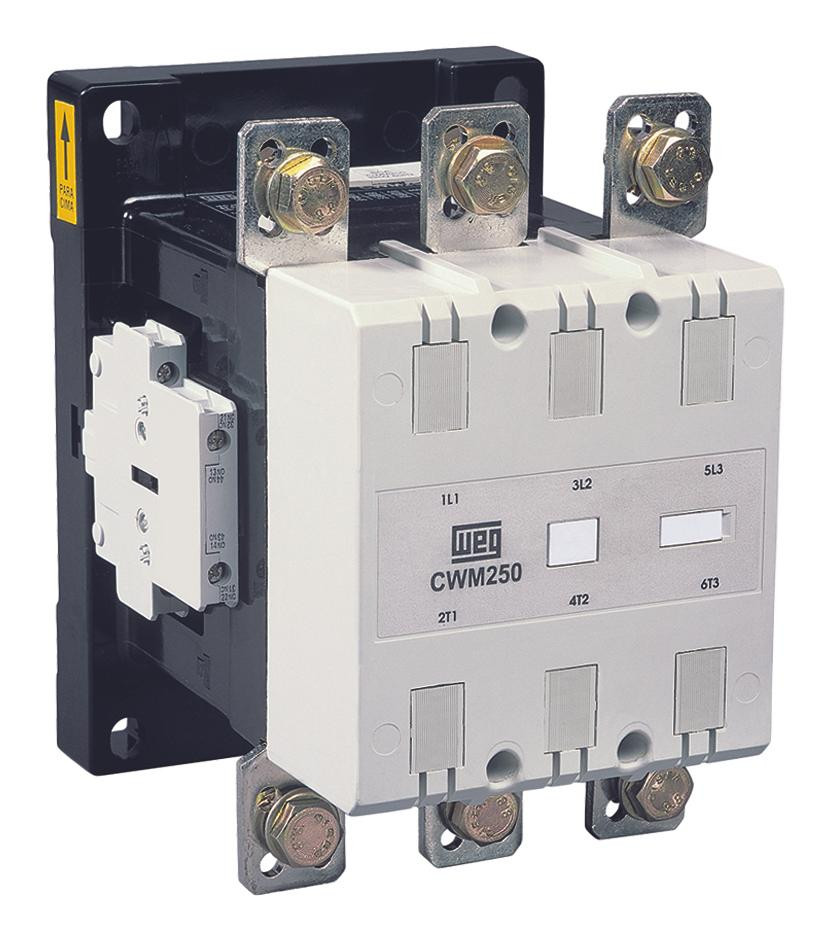

CWM250-22-30E10
Alt: 10535743
$969.60
Contactor, IEC, 250 Amps, 2NO/2NC, 110-130VAC/DC, 3-Pole, UL508, Use RW Overload Relay
- Weight:
- 14.90 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Control voltage: 24-28V 50/60Hz-DC
- Rated current In - AC-3 (Ue ≤ 440 V): 250 A
- Main contact: 3 NO
- Rated operational voltage Ue - IEC 60947-4-1: 1000 V
- Rated operational voltage Ue - UL/CSA: 600 V
- Height: 200 mm (7.87 in)
- Width: 144 mm (5.67 in)
- Depth: 181 mm (7.13 in)
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
Technical Information:
- Weg CWM250-22-30E10 Datasheet
- Weg CWM Series Contactors Flyer
- Weg CWM Series Contactors Technical Data
- Weg CWM Series Contactors Brochure
- Weg Controls Reference Codes Catalog
- Weg Automation Drives & Controls Catalog
- Weg Low Voltage Switch & Control Gear Catalog
- Weg Power and Control Products Catalog
Installation Guides:
- Weg CWM9 - CWM105 Contactor Installation Manual
- Weg CWM400/500/630/800 Contactor Installation Manual
- Weg CWM9 - CWM105 BCA/BCC Installation Manual
- Weg BLIM.02/BLIM9-105 Installation Manual
- Weg CWM500-800 BLIM Installation Manual
- Weg CWM9 - CWM105 JC Installation Manual
- Weg CWM EC-SD Installation Manual
Learn more about Contactors, Starters & Overload Relays here!
