CFW500E39P0T4DB20G2
Alt: 15577211, Replaces CFW500E39P0T4DB20 (13072263)
$2,020.98

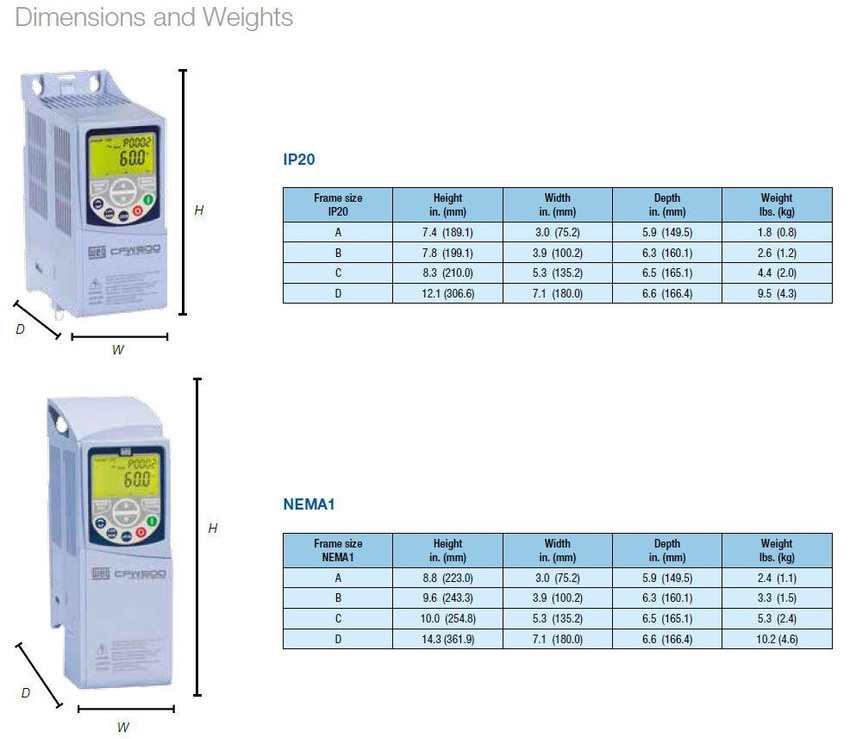

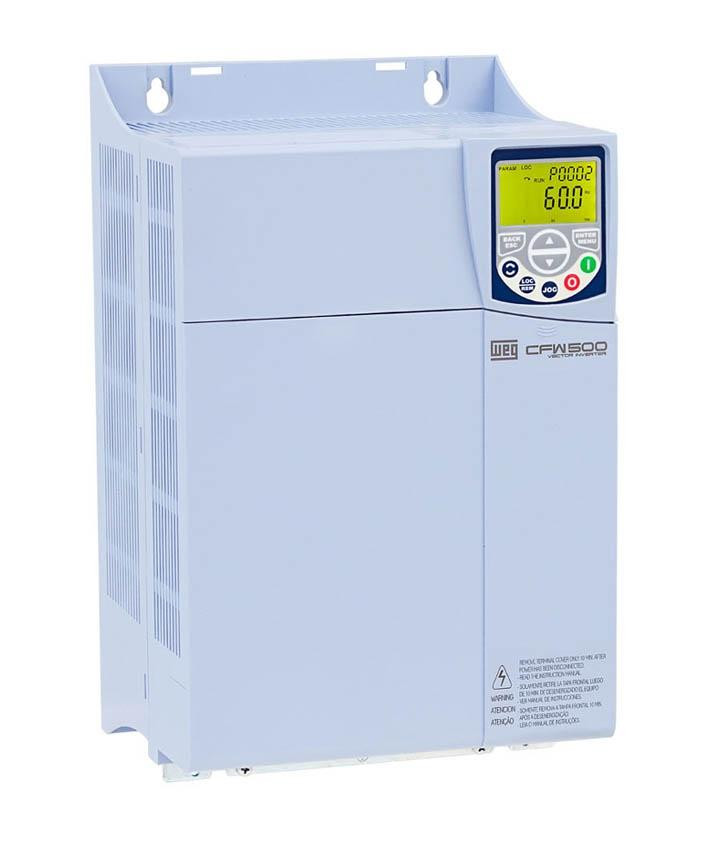

VFD, 30hp, 380-480VAC, 39A, 3 Phase, with Brake, IP20, Generation-2, E Frame, 13.8 x 8.7 x 7.6" HWD, Optional NEMA 1 Kit CFW500-KN1E Available to Order Separately
- Weight:
- 22.10 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CFW500 KPCSF Installation, Configuration and Operation Guide
The WEG CFW500 G2 variable frequency drive is a compact machinery drive for speed and torque control of three-phase induction and permanent magnet motors. The second-generation CFW500 uses a plug-and-play module concept, so OEMs, panel builders, and system integrators can choose the I/O and fieldbus options each machine needs. Step-by-step guided start-up and an intuitive built-in keypad help simplify commissioning in applications such as pumps, fans, conveyors, mixers, extruders, and winding machines.
Key Features
- IP20 enclosure for control panel installation, with an optional NEMA 1 kit available per frame size
- Control modes include scalar V/f, VVW voltage vector, sensorless vector, closed-loop vector with encoder, and VVW PM for permanent magnet motors
- 0 to 500 Hz output frequency
- Normal duty rating with 110% overload for 60 seconds and heavy duty rating with 150% overload for 60 seconds
- Standard CFW500-IOS plug-in module provides 4 isolated digital inputs, 1 analog input, 1 analog output, 1 relay output with NO/NC contact, and 1 transistor output
- Built-in RS485 Modbus-RTU on every plug-in module
- Optional plug-in modules add CANopen, DeviceNet, Profibus-DP, EtherNet/IP, Modbus-TCP, PROFINET IO, RS232, USB, encoder input, or expanded I/O
- Prepared for the optional CFW500-SFY2 safety module, which adds Safe Torque Off (STO) and Safe Stop 1 (SS1-t) functions
- Built-in SoftPLC for custom logic, programmed with free WEG software
- Pump Genius Simplex, Multipump, and Multiplex functions for dedicated pumping control
- Available with or without an internal dynamic braking transistor, depending on model
- Frame sizes F and G include built-in DC bus chokes
- Built-in LCD keypad displays up to three user-selected variables at once, with optional remote keypads for enclosure door mounting
- Optional CFW500-MMF flash memory module copies settings between drives without powering them up
- Standard 3C2 conformal coating per IEC 60721-3-3, with optional 3C3 coating for environments with corrosive gases
- Quick-change fan design for simple maintenance
- Rated ambient temperature of 40°C to 50°C, depending on frame size
- Protection against output short circuit, ground fault, undervoltage, overvoltage, heatsink overtemperature, and motor overload
- 100% of drives are factory tested under full load and maximum temperature
Certifications
- UL 508C
- UL 840
- EN 61800-5-1
- EN 61800-3 (EMC)
Technical Information:
- Weg CFW500E39P0T4DB20 Datasheet
- Weg CFW500-IP20-G2 (Generation 2) Variable Speed Drives Flyer
- Weg CFW500-IP20-G2 (Generation 2) Variable Speed Drives Brochure
- Weg CFW500 IP66 Protection Rating Flyer
- Weg CFW500 Installation & Power Connections Pocket Guide
- Weg CFW500 Quick Installation Guide
- Weg CFW500 Quick Parameter Reference
- Weg CFW500 Quick Setup Guide
- Weg CFW500 Quick Setup Guide Part 2
- Weg CFW500 Machinery Drives User's Manual
- WEG CFW500/CFW700 NEMA1 to IP20 Cross Reference
- Weg CFW500 Machinery Drives Programming Manual
- Weg CFW500 Pump Genius Simplex, Multipump & Multiplex Application Manual
- Weg CFW500 Solar Pump Drive Application Manual
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
Options Technical Information:
- WEG CFW500 Serial Remote HMI Installation, Configuration and Operation Guide
- WEG CFW500 SoftPLC User's Manual
- WEG CFW500 BACnet User's Manual
- WEG CFW500 CANopen User's Manual
- WEG CFW500 CAN Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 DeviceNet User's Manual
- WEG CFW500 Ethernet User's Manual
- WEG CFW500 Ethernet Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 USB Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Modbus RTU User's Manual
- WEG CFW500 Profibus DP User's Manual
- WEG CFW500 Profibus DP Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS232 Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS485 Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS485-B Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Flash Memory Module Installation, Configuration and Operation Guide
- WEG CFW500-SFY2 Safety Functions Module User's Manual
- WEG CFW500 IOR Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500-IOS-PNP Installation, Configuration and Operation Guide
- WEG Errata of the CFW500 User's Manual
- WEG CFW500 Analog & Digital I/O Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Digital I/O Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 KN1F-01 Installation, Configuration and Operation Guide
Application Notes and White Papers:
- WEG Energy Savings for the Water/Wastewater Industry White Paper
- WEG Industrial Refrigeration Motor Control Solutions White Paper
- WEG "Solutions for Harmonic Mitigation in Inverter Applications" White Paper
- Weg "Choosing a Variable Frequency Drive or Soft Starter Based on Your Application Need" Whitepaper
- Weg System Automation Solutions
