CFW500A04P3S2NB20G2
Alt: 15571953, Replaces CFW500A04P3S2NB20 (11474973)
$301.40
VFD, 1.5hp, 4.3A ND/VT, HD/CT, Input Power Supply: Single Phase 200-240VAC, Motor Voltage: 230VAC, 3 Phase, No Dynamic Braking, IP20, Gen. 2, Frame A: 7.5 x 3.0 x 5.9" (HWD), Optional NEMA 1 Kit CFW500-KN1A Available to Order Separately
- Weight:
- 6.80 LBS
- Minimum Purchase:
- 1 unit
Description
WEG CFW500 KPCSF Installation, Configuration and Operation Guide

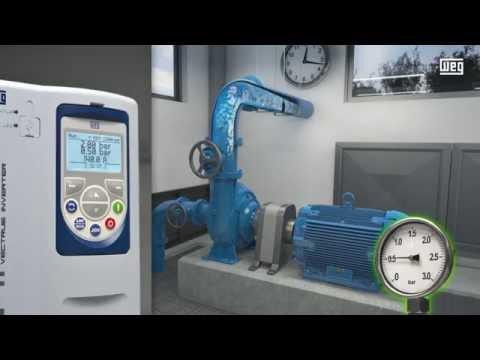

The WEG CFW500 G2 variable frequency drive is a compact machinery drive for speed and torque control of three-phase induction and permanent magnet motors. The second-generation CFW500 uses a plug-and-play module concept, so OEMs, panel builders, and system integrators can choose the I/O and fieldbus options each machine needs. Step-by-step guided start-up and an intuitive built-in keypad help simplify commissioning in applications such as pumps, fans, conveyors, mixers, extruders, and winding machines.
Key Features
- IP20 enclosure for control panel installation, with an optional NEMA 1 kit available per frame size
- Control modes include scalar V/f, VVW voltage vector, sensorless vector, closed-loop vector with encoder, and VVW PM for permanent magnet motors
- 0 to 500 Hz output frequency
- Normal duty rating with 110% overload for 60 seconds and heavy duty rating with 150% overload for 60 seconds
- Standard CFW500-IOS plug-in module provides 4 isolated digital inputs, 1 analog input, 1 analog output, 1 relay output with NO/NC contact, and 1 transistor output
- Built-in RS485 Modbus-RTU on every plug-in module
- Optional plug-in modules add CANopen, DeviceNet, Profibus-DP, EtherNet/IP, Modbus-TCP, PROFINET IO, RS232, USB, encoder input, or expanded I/O
- Prepared for the optional CFW500-SFY2 safety module, which adds Safe Torque Off (STO) and Safe Stop 1 (SS1-t) functions
- Built-in SoftPLC for custom logic, programmed with free WEG software
- Pump Genius Simplex, Multipump, and Multiplex functions for dedicated pumping control
- Available with or without an internal dynamic braking transistor, depending on model
- Frame sizes F and G include built-in DC bus chokes
- Built-in LCD keypad displays up to three user-selected variables at once, with optional remote keypads for enclosure door mounting
- Optional CFW500-MMF flash memory module copies settings between drives without powering them up
- Standard 3C2 conformal coating per IEC 60721-3-3, with optional 3C3 coating for environments with corrosive gases
- Quick-change fan design for simple maintenance
- Rated ambient temperature of 40°C to 50°C, depending on frame size
- Protection against output short circuit, ground fault, undervoltage, overvoltage, heatsink overtemperature, and motor overload
- 100% of drives are factory tested under full load and maximum temperature
Certifications
- UL 508C
- UL 840
- EN 61800-5-1
- EN 61800-3 (EMC)
Technical Information:
- Weg CFW500A04P3S2NB20 Datasheet
- Weg CFW500-IP20-G2 (Generation 2) Variable Speed Drives Flyer
- Weg CFW500-IP20-G2 (Generation 2) Variable Speed Drives Brochure
- Weg CFW500 IP66 Protection Rating Flyer
- Weg CFW500 Installation & Power Connections Pocket Guide
- Weg CFW500 Quick Installation Guide
- Weg CFW500 Quick Parameter Reference
- Weg CFW500 Quick Setup Guide
- Weg CFW500 Quick Setup Guide Part 2
- Weg CFW500 Machinery Drives User's Manual
- WEG CFW500/CFW700 NEMA1 to IP20 Cross Reference
- Weg CFW500 Machinery Drives Programming Manual
- Weg CFW500 Pump Genius Simplex, Multipump & Multiplex Application Manual
- Weg CFW500 Solar Pump Drive Application Manual
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
Options Technical Information:
- WEG CFW500 Serial Remote HMI Installation, Configuration and Operation Guide
- WEG CFW500 SoftPLC User's Manual
- WEG CFW500 BACnet User's Manual
- WEG CFW500 CANopen User's Manual
- WEG CFW500 CAN Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 DeviceNet User's Manual
- WEG CFW500 Ethernet User's Manual
- WEG CFW500 Ethernet Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 USB Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Modbus RTU User's Manual
- WEG CFW500 Profibus DP User's Manual
- WEG CFW500 Profibus DP Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS232 Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS485 Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 RS485-B Communication Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Flash Memory Module Installation, Configuration and Operation Guide
- WEG CFW500-SFY2 Safety Functions Module User's Manual
- WEG CFW500 IOR Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500-IOS-PNP Installation, Configuration and Operation Guide
- WEG Errata of the CFW500 User's Manual
- WEG CFW500 Analog & Digital I/O Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 Digital I/O Plug-In Module Installation, Configuration and Operation Guide
- WEG CFW500 KN1F-01 Installation, Configuration and Operation Guide
Application Notes and White Papers:
- WEG Energy Savings for the Water/Wastewater Industry White Paper
- WEG Industrial Refrigeration Motor Control Solutions White Paper
- WEG "Solutions for Harmonic Mitigation in Inverter Applications" White Paper
- Weg "Choosing a Variable Frequency Drive or Soft Starter Based on Your Application Need" Whitepaper
- Weg System Automation Solutions
Accessories
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$15.73
Weg
CFW500-CUSB
Plug-in Module with USB Port, CFW500 Communication Module; USB Card: 1 USB, 1 RS485, 4 DI, 1 AI, 1 AO, 1 DOR, 1 DOT, 10VDC, 24VDC for CFW500 Drives
$126.84
Dart Controls
SA-STOK-WO
5K Ohm Speed Pot Kit, 8.75" Leads, Knob, & Dial, Use When You Need an Input Device to Set Speed in VFD Applications, Ideal for Panel Mounting
$36.00
Weg
CFW500-CEMB-TCP
Modbus-TCP Communication Plug-in Module, CFW500 Communication Module: Modbus TCP : 1-Modbus TCP 100BASE TX RJ-45 Port, 1-RS485, 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 24VDC for CFW500 Drives
$301.40
Weg
CFW500-CEPN-IO
PROFINET IO Communication Plug-in Module, CFW500 Communication Module: ProfiNet I/O : 1-ProfiNet I/O 100BASE TX RJ-45 Port, 1-RS485, 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 24VDC for CFW500 Drives
$301.40
Weg
CFW500-MMF
CFW500 Flash Memory Module for Saving and Reloading Program and Parameters to / from the Drive for CFW500 Drives
$114.16
Weg
CFW500-CPDP2
CFW500 Communication Module: Profibus DP & DP-V1 Module, : 1-Profibus DP & DP-V1 100BASE TX RJ-45 Port, 1-RS485, 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 24VDC (Terminal Block Connector) for CFW500 Drives
$268.78
Weg
CFW500-ENC
Plug-in Module with Encoder Input, CFW500 Encoder Module: Quad Input A & B, 1 RS485, 5 DI, 1 AI, 1 AO, 3 DOR, 1 DOT, 24VDC, English/Portuguese/Spanish
$126.84
Weg
CFW500-CCAN
CAN Communication Plug-in Module (CANopen/DeviceNet), CFW500 Communication Module: CANopen Card: 1 CAN/DeviceNet, 1 RS485, 2 DI, 1 AI, 1 AO, 1 DOR, 1 DOT, 10VDC, 24VDC for CFW500 Drives
$79.39
Weg
CFW500-HMIR
CFW500 Remote Non-Text Keypad for Mounting through Enclosure Door (Mounting Frame Kit Not Required). Requires Qty. (1) CFW500-CCHIR0xM Cable to Order Separately: (x represents the Cable length in meters).
$102.08
Weg

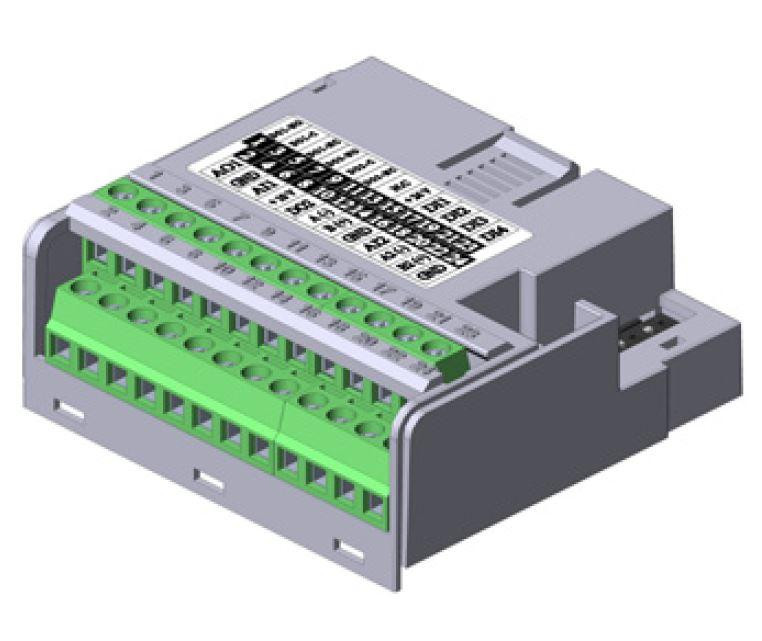

CFW500-CRS485-B
