Available Now! I51BP215D00001K00S
Available Now! (1 in stock)
Lenze

I51BP215D00001K00S

Alt: 17164027, Possible Replacement for ESV152N02YXB

$376.01

Frequency inverters, i510 protec, 2 Hp, Heavy/Light Duty Rated, 230/240V AC, IP20

Weight:
2.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

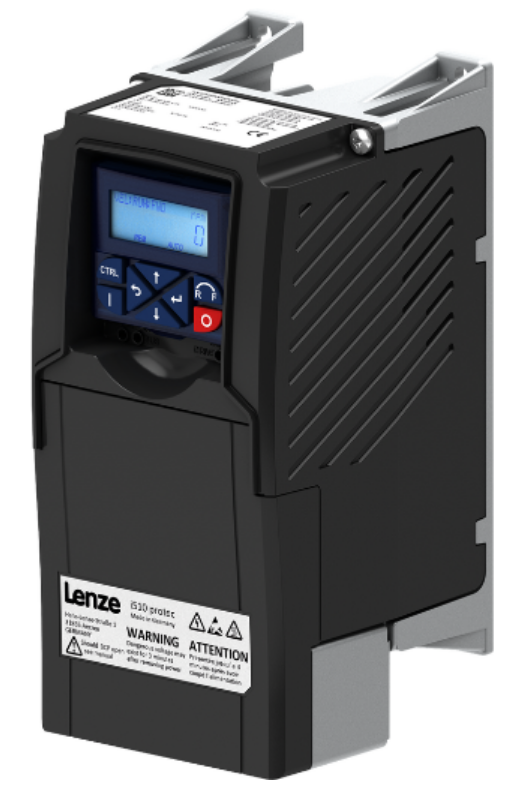

Compact Lenze i510 protec VFD for mounting close to the motor
Description

The Lenze i510 protec frequency inverter uses the same proven technology as the Lenze i510 cabinet drive in an adapted housing, making it a practical choice when control cabinet space is limited or the drive needs to be mounted close to the motor. In the USA, its NEMA/UL Type 1 housing permits installation outside the control cabinet. Typical applications include conveyor drives, traveling drives, pumps, and fans.

Key Features

  • Power range from 0.5 to 15 hp
  • Models for 1-phase 120V and 230V supplies and 3-phase 230V, 400V, 480V, and 600V supplies
  • NEMA/UL Type 1 (IP20) housing
  • Standard I/O with 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, and 1 NO/NC relay
  • Available with CANopen or Modbus RTU communication
  • Versions with keypad, USB module, or WLAN module for easy commissioning

Certifications

  • Meets the requirements of the Ecodesign Directive, standard EN IEC 61800-9-2
