I51BP137D00001W00S
Alt: 17164083 - This replaces I51BP137D00001W00S - 16559432
VFD, 0.37kW, 0.50hp, Heavy/Light Duty Rated, 230/240VAC, 1/N/PE, 3/PE, No Safety Technology, No Extension Box, WLAN Module with Standard I/O without Network, NEMA 1, IP20, i510 Protec Series, Keypad Purchased Separately: I5MADK0000000S
- Weight:
- 2.80 LBS
- Minimum Purchase:
- 1 unit

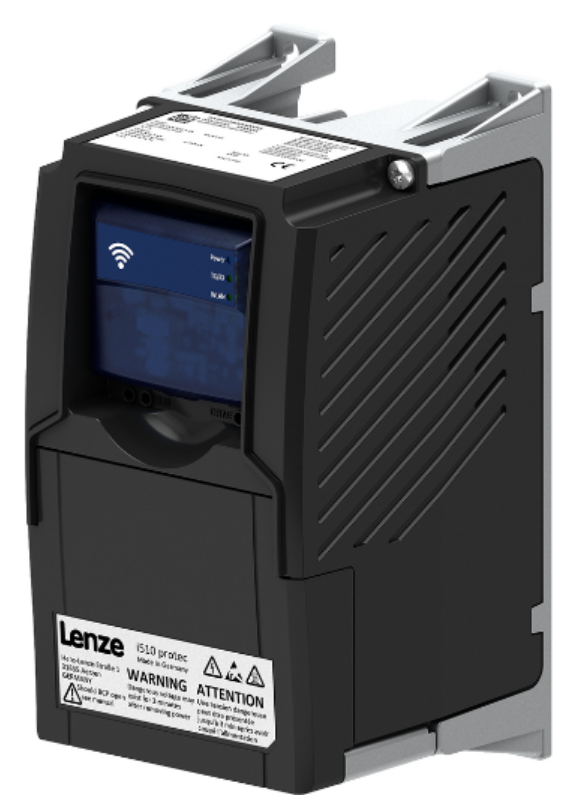

The Lenze i510 protec frequency inverter uses the same proven technology as the Lenze i510 cabinet drive in an adapted housing, making it a practical choice when control cabinet space is limited or the drive needs to be mounted close to the motor. In the USA, its NEMA/UL Type 1 housing permits installation outside the control cabinet. Typical applications include conveyor drives, traveling drives, pumps, and fans.
Key Features
- Power range from 0.5 to 15 hp
- Models for 1-phase 120V and 230V supplies and 3-phase 230V, 400V, 480V, and 600V supplies
- NEMA/UL Type 1 (IP20) housing
- Standard I/O with 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, and 1 NO/NC relay
- Available with CANopen or Modbus RTU communication
- Versions with keypad, USB module, or WLAN module for easy commissioning
Certifications
- Meets the requirements of the Ecodesign Directive, standard EN IEC 61800-9-2
