Alt: OBD10M-R2000-4EP-V1V17, (Was 253403)
$4,032.00
Detection Sensor, 2-D Laser Scan, 0.2-10m, IP65, 30 Hz Scan Frequency, PRT, 4 Input/Output, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 2.50 LBS
- Minimum Purchase:
- 1 unit
Description
360° measurement angle gives you true all-around visibility!
R2000 Detection, 2-D laser scanner for precise field monitoring, measuring range to object up to 10 meters.
3 models to choose from:
- 253403 is 0.2 to 10m, IP65
- 275236 is 0.1 to 30m, IP65
- 279200 is 0.1 to 30m, IP67
Features Include:
- 4 freely programmable monitoring fields
- 4 inputs/outputs (selectable)
- High angle resolution
- 360°-angle of measurement
- Measuring method PRT (Pulse Ranging Technology) - extremely precise
- Detection of tiny objects
- Interactive display provides text and graphical information
Measurement Range
- 0.2 ... 3 m (bk 10%)
- 0.2 to 10 m (wh 90%)
- 0.2 to 30 m (reflector)
Light Source
- Laser diode
Light Type
- Modulated visible red light
Laser Nominal Ratings
- Laser Class: 1
- Wave Length: 660 nm
Measuring Method
- Pulse Ranging Technology (PRT)
Scan Rate
- 10 Hz, 20 Hz, 30 Hz
Diameter of the light spot
- < 20 mm at 10 m
Operating voltage
- 10 - 30 V DC
Input/output type
- 4 Inputs/Outputs , Independently configurable , short circuit/reverse polarity protected
Connection
- 4-pin, M12x1 connector, A-coded (supply) ,
- 8-pin, M12x1 connector, A-coded (MultiPort) ,
- 4-pin, M12x1 socket, D-coded (LAN)
Housing
- ABS + PC + aluminum
Need More Information?
Learn More About Pepperl+Fuchs Here!

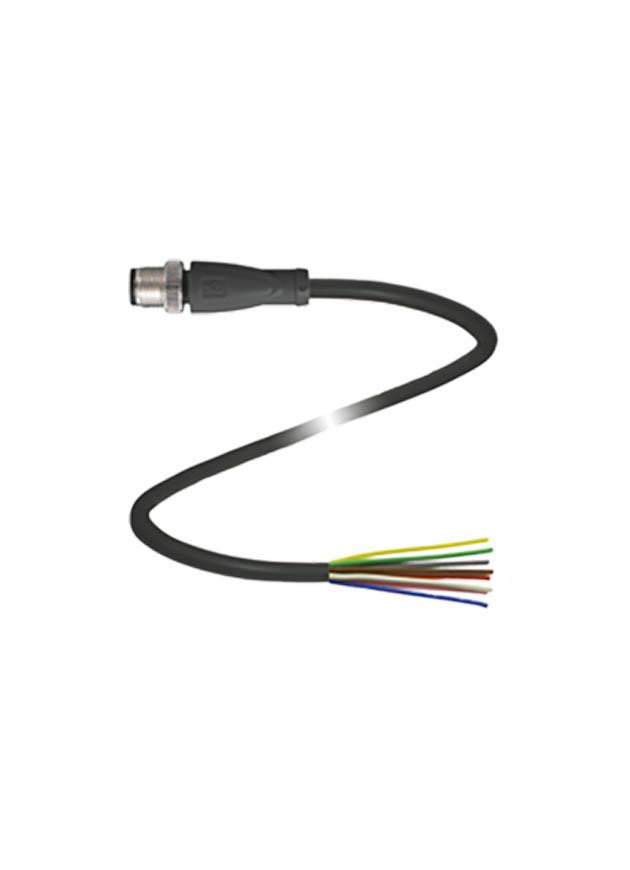

Accessories
