Description

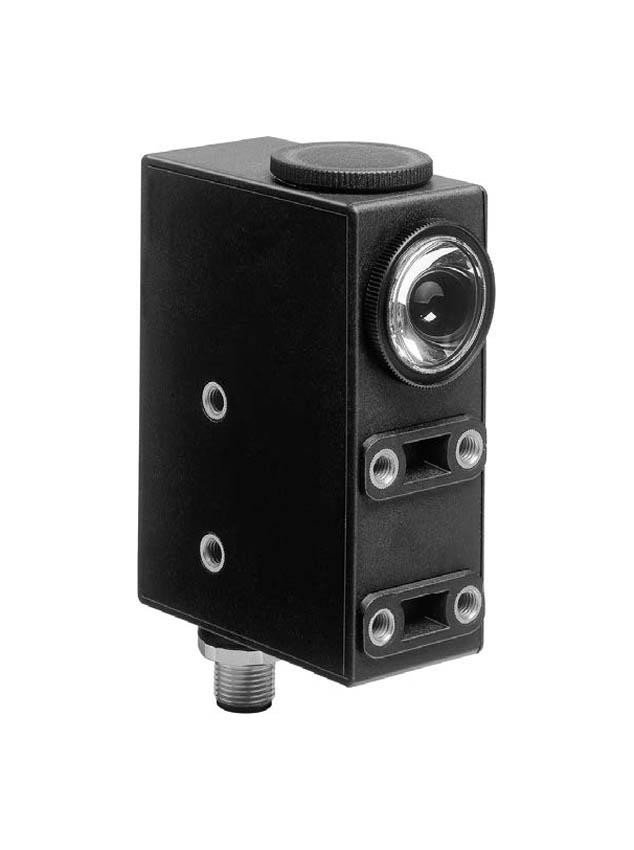

This is a print mark contrast sensor with a 5-pin, M12 connector.
Features include:
- Diffuse mode sensor for recording any print mark
- Static TEACH-IN: automatic switching threshold adaptation
- Optical system exchangeable by 90°
- 30 µs response time, suitable for extremely rapid scanning processes
- 3 emitter colors: green, red and blue
Features Include:
- Sensor Range: 25 mm ± 6 mm
- Light Source: LED
- Light Type: Visible green/red/blue, modulated light
- Light Spot Representation: 2 mm x 8.5 mm
- Operating Voltage: 10 - 30 V DC
- Switching Type: Light/dark on switchable, results from the order of the Teach-In
- Switching Frequency: 16.5 kHz
- Connection: 5-pin, M12 x 1 connector
- Housing: PC (glass-fiber-reinforced Makrolon)
- Diffuse mode sensor for recording any print mark
- Static TEACH-IN: automatic switching threshold adaptation
- Optical system exchangeable by 90°
- 30 μs response time, suitable for extremely rapid scanning processes
- 3 emitter colors: green, red and blue
light/dark on switchable, results from the order of the Teach-In
