267075-100120
Alt: OBE20M-R100-S-IO-V31-L , Non-Cancellable, No Returns per Manufacturer
$131.04

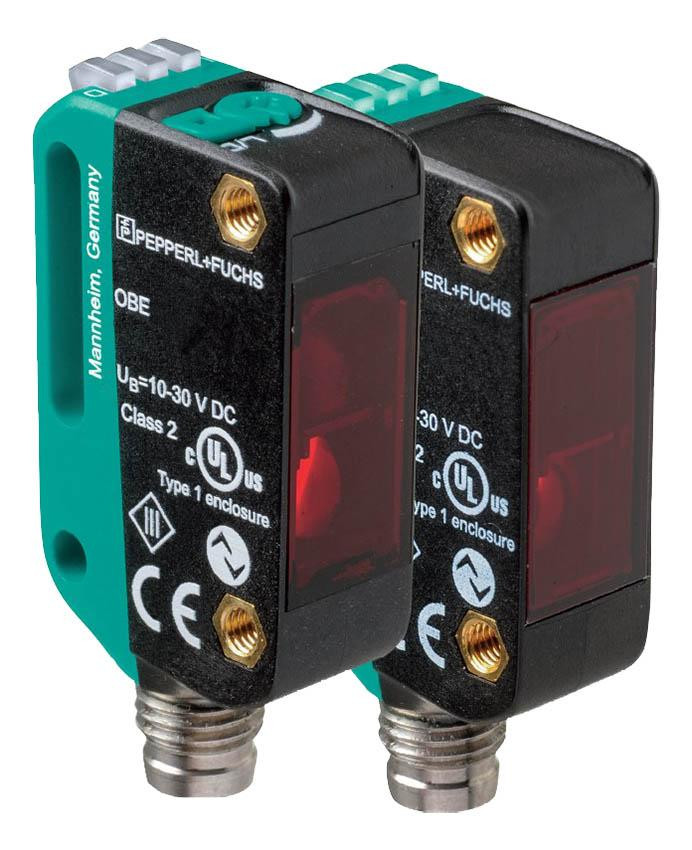

Photoelectric, DC, Thru-Beam (Emitter), Laser, 0-20m, M8 Quick Disconnect, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
- Both R10x and R20x offer IO-Link, DuraBeam and MPT
- R10x - small housing design
- R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Features Include:
- Effective detection range: 0 - 20 m
- Threshold detection range: 30 m
- Light source: laser diode
- Light type: modulated visible red light
- LED risk group labelling: exempt group
- Wave length: 680 nm
- Beam divergence: > 5 mrad ; d63 < 2 mm in the range of 250 mm ... 750 mm
- Diameter of the light spot: approx. 50 mm at a distance of 20 m
- Angle of divergence: 0.3°
- Operating voltage: 10 - 30 V DC
- Ripple: max. 10 %
- No-load supply current: Emitter: ≤ 13 mA, Receiver: ≤ 13 mA at 24 V supply voltage
- Signal output: 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
- Switching voltage: max. 30 V DC
- Switching current: max. 100 mA , resistive load
- Voltage drop: ≤ 1.5 V DC
- Switching frequency: 1250 Hz

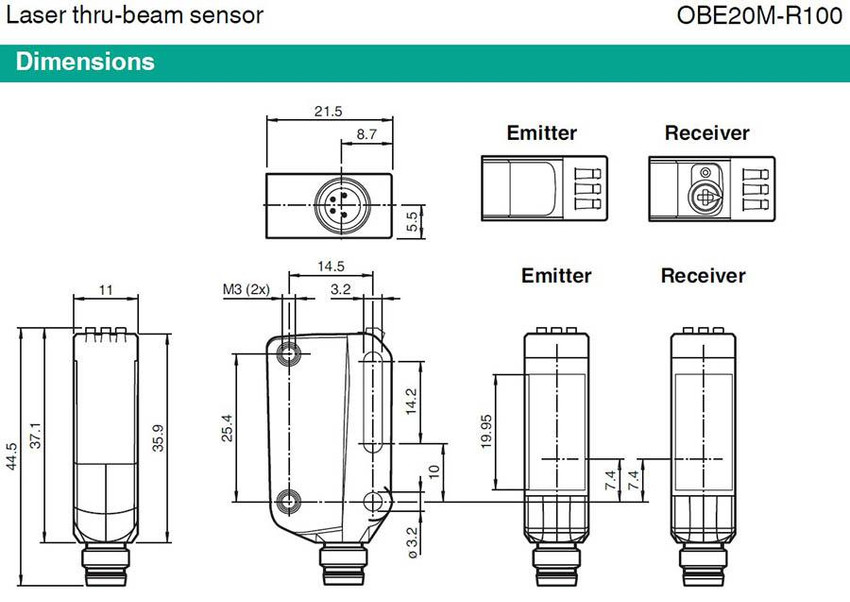

- Housing width: 11 mm
- Housing height: 44.5 mm
- Housing depth: 21.5 mm
- Degree of protection: IP67 / IP69 / IP69K
- Connection: M8 x 1 connector, 4-pin
Technical Information:
- Pepperl+Fuchs OBE20M-R100-S-IO-V31-L Thru-Beam Sensor Technical Data
- Pepperl+Fuchs Sensors and Systems Product Overview for Factory Automation
- Pepperl+Fuchs IO-Link Offline Parameterization User Instructions
- Pepperl+Fuchs Type Designation Code For Photoelectric Sensors
- Pepperl+Fuchs Industrial Sensors Quick Select Product Guide Catalog
