DL-S200TC

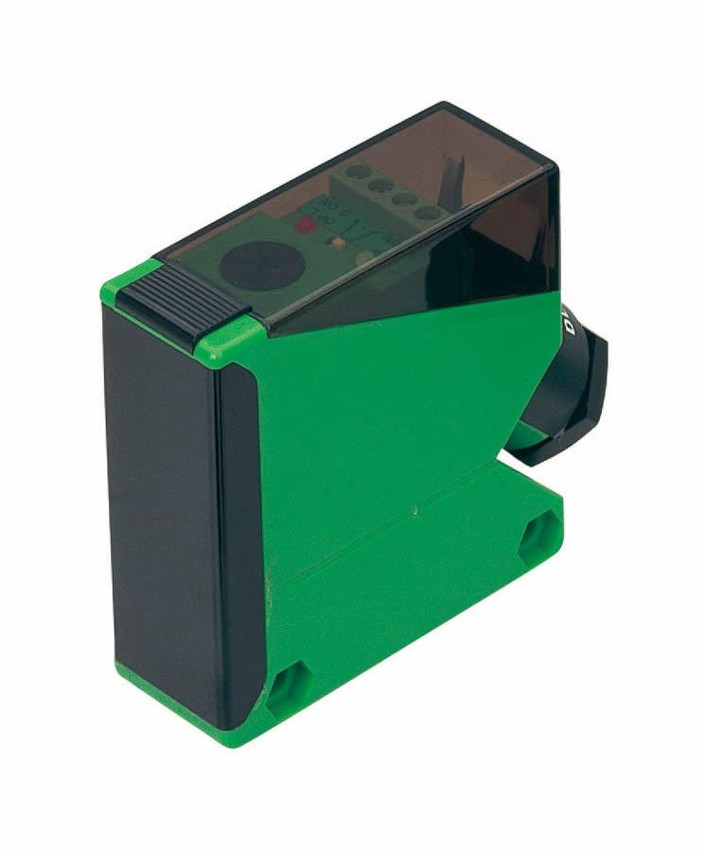

Photo Sensor, Fixed Field Reflective, NPN/PNP, Infrared LED, Terminal Block, 200/2000mm

Features Include:

• Long distance type 1m or 2m
• Terminal board connection ensures open space at writing
• Detection Distance: 0.2-2m
• Detection Method: Limited range reflective
• Setting Distance: 0.2 - 2m (with 200×200mm white drawing paper)
• Power Supply: 12 - 24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10% or less
• Current Consumption: 30mA or less
• Operation Mode: Light ON/Dark ON selectable (with switch)
• Volume (VR): NEAR/FAR: Optical distance adjustment
• Response Time: 10ms or less
• Hysteresis: 10% of detecting distance or less
• Light Source (light wavelength): Infrared LED (880nm)
• Light Receiving Element: 2 segment photodiode
• Material: Body: polycarbonate / Front, terminal cover: acrylic
• Connection: Terminal block

Indicator:

• OP.L: operation indicator (red LED)
• UP: stability indicator (green LED)

Switch:

• Light ON/Dark ON selector switch
• L.ON: Light ON | D.ON: Dark ON

Output Mode:

• NPN/PNP open collector dual outputs
• Rating: current 100 mA (30 VDC) or less *2

Environmental Factors:

• Ambient Light: 10,000 lx or less
• Ambient Temperature: -25 - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric: 1,000 VAC for 1 minute
• Insulation Resistance: 500 VDC, 20 MΩor higher
