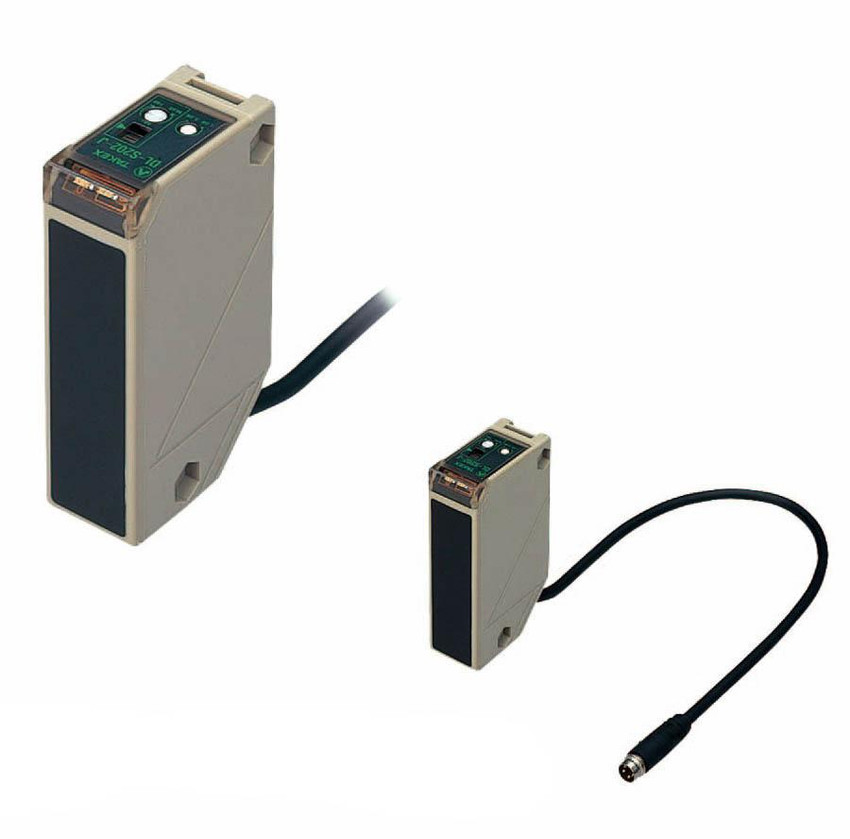

DL-S202R

Background Suppression Photo Sensor, Long Range Reflective, IP66, Red LED

Features Include:

• Exceptionally Stable unit (Stable detection by distance judgement)
• Tolerant of a wide range of colors
• Long range type that can withstand severe environments
• Detection Distance: 0.1 - 2m (with adjustment at or less)
• Detection Method: Limited range reflective
• Setting Distance: 0.2 - 2m (with 200×200mm white drawing paper)
• Power Supply: 12 - 24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10% or less
• Current Consumption: 30mA or less
• Operation Mode: Light ON/Dark ON selectable (with switch)
• Response Time: 2ms or less
• Hysteresis: 10% of detecting distance or less
• Light Source (light wavelength): Red LED (650nm)
• Light Receiving Element: 2 segment photodiode
• Volume (VR): NEAR/FAR: 5-turn optical distance adjustment
• Ambient Temperature: -25 - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
• Shock:100 m/s2 / 3 times each in 3 directions
• Dielectric: 1,000 VAC for 1 minute
• Insulation Resistance: 500 VDC, 20 MΩor higher
• Material: Case and lens: polyarylate
• Connection:Attached cable (outer dimension: dia. 4mm) 0.2mm2 4 cores 2m length

Indicator:

• Red LED: Operation Indicator
• Green LED: Stability Indicator

Ambient Light:

• Sunlight: illumination on light receiving surface 10,000 lx or less.
• Incandescent lamp: illumination on light receiving surface 3,000 lx or less

Output Mode:

• NPN/PNP open collector 2 outputs
• Rating: 100 mA (30 VDC) or less
• NPN: sink current / PNP: source current

Need More Information?

• Takex DL-S High Intensity Background Suppression Photo Sensor Datasheet
• Takex America Inc. Training Manual
