02018ET3EID256TC-W22
Weg

02018ET3EID256TC-W22

Alt: 12809164

$2,026.70

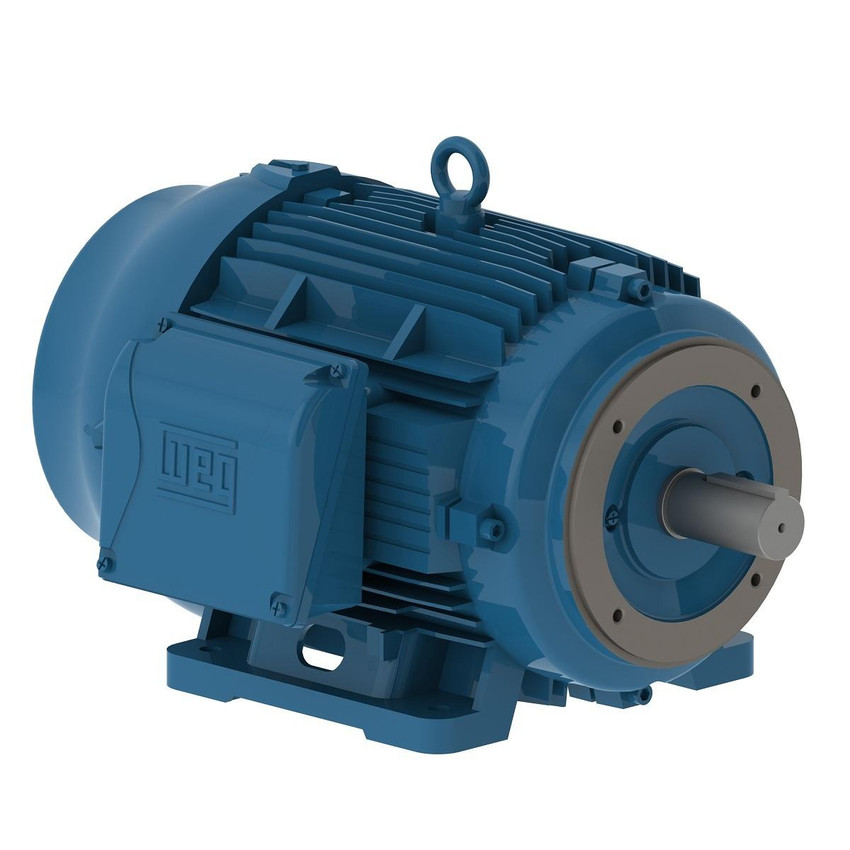

Motor, 20hp, 1800rpm, 3 Phase, 230/460V, 254/6TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount

Weight:
403.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 20hp, 1800rpm, 3-Phase 230/460V, 254/6TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount

Features Include:

  • Output Rating: 20 HP (15 kW)
  • Rated Voltage: 208-230/460 V
  • Rated Current: 53.3-48.2/24.1 A
  • Synchronous Speed: 1800 rpm
  • Rated Speed: 1765 rpm
  • Rated Torque: 58.7 ft.lb
  • Number of Poles: 4
  • Frequency: 60 Hz
  • No-Load Current: 17.2-20.0/10.0 A
  • Starting Method: Direct on Line
  • Mounting: Foot-Mounted, F-1
  • Enclosure: IC411 - TEFC
  • Frame: 254/6TC
