Weg
01512ET3E284TC-W22
Motor, 15hp, 1200rpm, 3 Phase, 208-230/460V, 284/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$2,944.36
01018ET3EID215TC-W22
Alt: 12809033
$1,233.54
Motor, 10hp, 1800rpm, 3 Phase, 230/460V, 213/5TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount
- Weight:
- 194.00 LBS
- Minimum Purchase:
- 1 unit
Description

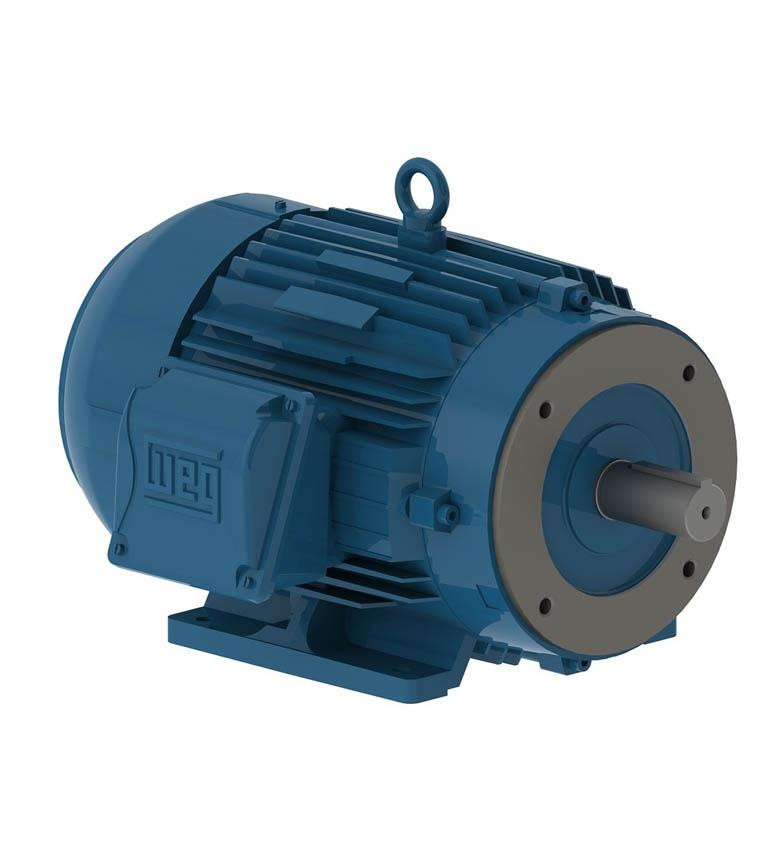

Motor, 10hp, 1800rpm, 3-Phase 230/460V, 213/5TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount
Features Include:
- Output Rating: 10 HP (7.5 kW)
- Rated Voltage: 208-230/460 V
- Rated Current: 27.4-24.8/12.4 A
- Synchronous Speed: 1800 rpm
- Rated Speed: 1755 rpm
- Rated Torque: 29.4 ft.lb
- Number of Poles: 4
- Frequency: 60 Hz
- No-Load Current: 9.74-11.3/5.65 A
- Starting Method: Direct on Line
- Mounting: Foot-Mounted, F-1
- Enclosure: IC411 - TEFC
- Frame: 213/5TC
