Patlite
SZ-120-10
Cable, 10m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Stack Lights
$147.81

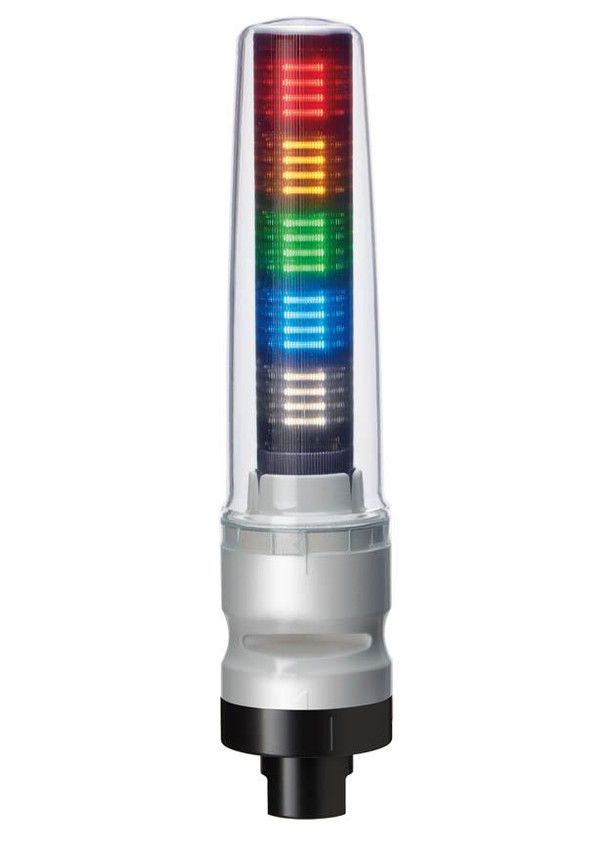

LS7-502SFBWH-RYGBC
Alt: LS7 Series
$328.56
Stack Light, Andon, Ø70mm, RYGBC Silver, Steady/Flashing/AlarmLED, 24VDC, Direct Mount, Lead Wires, IP54
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Patlite has released their latest evolution of beacons that includes the SL, SK and SF series:
- SL flashing beacons - standard light functions with flash settings, available in 80, 100, 150mm
- SK rotating beacons - motorized rotation with efficient light output, available in 80, 100, 150mm
- SF multi-function beacons - LED animation including simulated rotation, available in 80, 100mm
These will replace: RS, RU, RH, SKE-A, WH, SKF-A, KP-A, SKL-A, SKLB, SKLS, RLE, RHE, PEW, PES, PSE, KHE, KPE, KLE, XPE, XME
Ones that will continue as they are: SKH-H, RLR, NE-A, LFH/LFK, REL
To achieve IP65 Rating:
- SKS series use SZW-102, SKH use SZW-103
- Cable type SF08 series use SZW-102, SF10 use SZW-103
- Cable type SL08 series use SZW-102, SL10 use SZW-103
Features Include:
- 70mm signal tower
- IP69K rated for high pressure and high temperature washdown
- No exposed screws, shafts or other metal components
- ideal for sanitary environment applications!
- Shock resistant polycarbonate lens
- 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
Need More Information?
- Patlite LS7 Series Brochure
- Patlite LS7 Buzzer-Included Model Spec Sheet
- Patlite LS7 Buzzer-less Model Spec Sheet
- Patlite LS7 Instruction Manual
- Patlite General Product Catalog
Learn more about Patlite's LS7 LED Signal Tower here!
Read more about Light Towers and Patlite here!
