Optimum Range Selections: One model each J,K: adjustable over entire sensing range
Field-of-View @ > min. spot: 10:1(6°) approximately
Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3ft (.9 m) std length, Teflon sheathed, rated to 392°F (200°C) continuous service

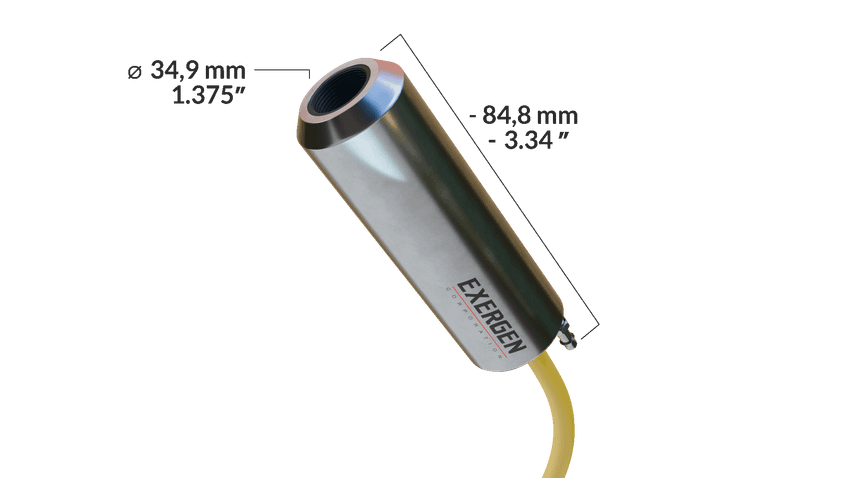

Dimensions: 3.34" x 1.375" Dia. (85 x 35 mm)
Housing: Stainless steel, hermetically sealed, exceeds NMEA 4, 4x; IP65,67, instrinsically safe, cable shield grounded to housing and electrically isolated from signal
Air Purge: Built-in; cooling capacity to 400°F (200°C) ambient; 3' (0.9m) polyurethane tubing provided
Sensing Range:
Non-Metal Target Surface: -50 to 2500 °F (-45 to 1370 °C)
Metal Target Surface: 500 to 2500 °F (260 to 1370 °C)
Spectral Response:
Non-Metal Target Surface: 2 to 20 µ
Metal Target Surface: 0.1 to 5 µ
Output Impedance:
Non-Metal Target Surface: 6 to 13 Kohms approximately
