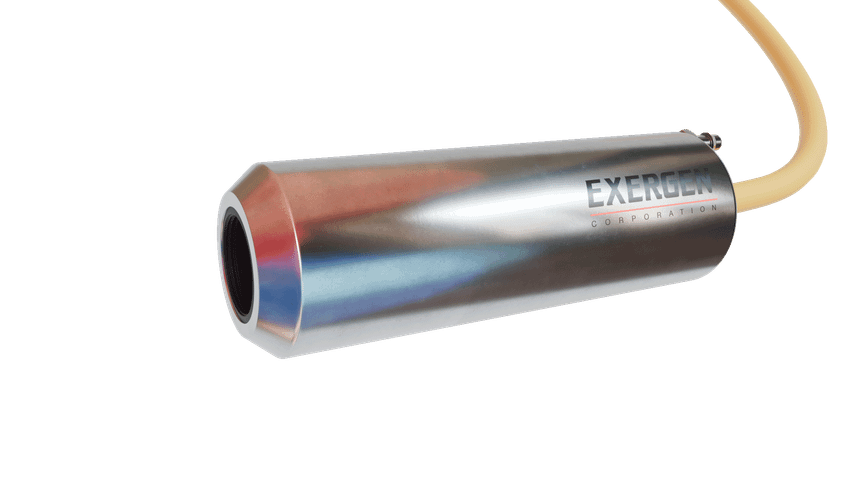

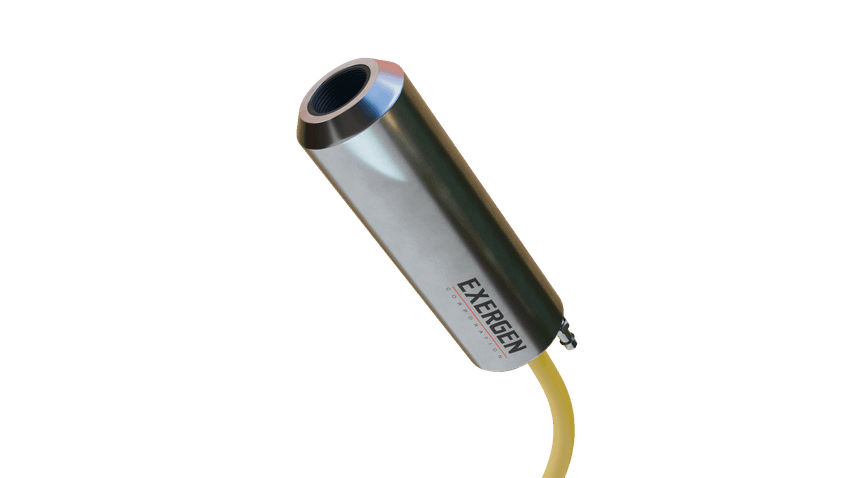

IRT/C.10A-K-1500HIE

Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.



Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.

Features Include:

• Optimum Range Selections: One model each J,K: adjustable over entire sensing range
• Field-of-View @ > min. spot: 10:1(6°) approximately
• Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3ft (.9 m) std length, Teflon sheathed, rated to 392°F (200°C) continuous service
• Dimensions: 3.34" x 1.375" Dia. (85 x 35 mm)
• Housing: Stainless steel, hermetically sealed, exceeds NMEA 4, 4x; IP65,67, instrinsically safe, cable shield grounded to housing and electrically isolated from signal
• Air Purge: Built-in; cooling capacity to 400°F (200°C) ambient; 3' (0.9m) polyurethane tubing provided

Sensing Range:

• Non-Metal Target Surface: -50 to 2500 °F (-45 to 1370 °C)
• Metal Target Surface: 500 to 2500 °F (260 to 1370 °C)

Spectral Response:

• Non-Metal Target Surface: 2 to 20 µ
• Metal Target Surface: 0.1 to 5 µ

Output Impedance:

• Non-Metal Target Surface: 6 to 13 Kohms approximately
• Metal Target Surface: 9 to 18 Kohms approximately
