Pepperl+Fuchs
326161-0175
Inductive Proximity Sensor, Ø30mm, 3-Wire, 25mm Range, NPN NO, M12, Returns of This Item Must Be Approved by Manufacturer
$142.24
326161-0176
Alt: NBN25-30GM50-E0, (Was 088244), Non-Cancellable, No Returns per Manufacturer
$142.24
Inductive Proximity Sensor, Ø30mm, 3-Wire, 25mm Range, NPN NO, Cabled, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

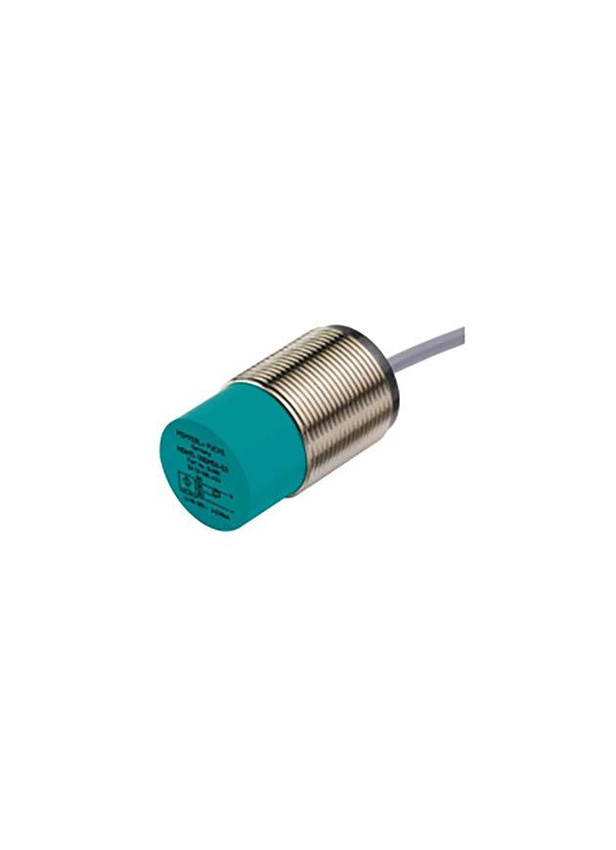

Inductive Proximity Sensor, 30mm Dia., 3-Wire, NPN, NO, Cabled
Ever wondered how to really pronounce "Pepperl+Fuchs"? Learn how here!
Features Include:
- Rated Operating Distance: 25 mm
- Installation: Non-Flush
- Assured Operating Distance: 0 - 20.25 mm
- Switching Frequency: 0 - 200 Hz
- Operating Voltage: 10 - 30 V
- Operating Current: 0 - 200 mA
- Connection Type: Cable PVC , 2 m
- Housing Diameter: 30 mm
- Short-Circuit Protection: Pulsing
- Switching State Indicator: All direction LED, yellow
- Ambient Temperature: -25 - 70 °C (-13 - 158 °F)
- Sensing Face: PBT
