Pepperl+Fuchs
326161-0175
Inductive Proximity Sensor, Ø30mm, 3-Wire, 25mm Range, NPN NO, M12, Returns of This Item Must Be Approved by Manufacturer
$142.24
326161-0016
Alt: NBB4-12GM30-E3-V1, (Was 087740)
$106.40

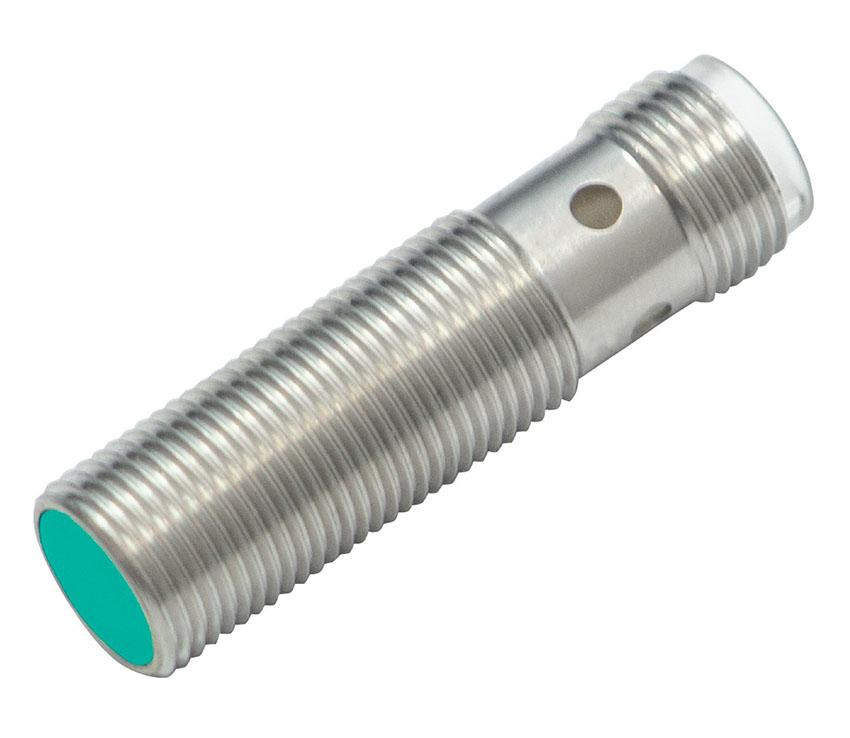

Inductive Proximity Sensor, 3-Wire DC, Flush, 5-36VDC, 4mm Range, 0-200mA, PNP NC, M12 x 1, 3-Pin Plug, IP68
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching function: Normally closed (NC)
- Output type: PNP
- Rated operating distance: 4 mm
- Output type: 3-wire
- Installation: flush
- Output polarity: DC
- Assured operating distance: 0 - 3.24 mm
- Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm
- Operating voltage: 5 - 36V DC
- Operating current: 0 - 200 mA
- Switching frequency: 0 - 2550 Hz
- Connection type: Connector plug
- Housing material: brass, white bronze coated
- Sensing face: PBT
- Degree of protection: IP68
Technical Information:
