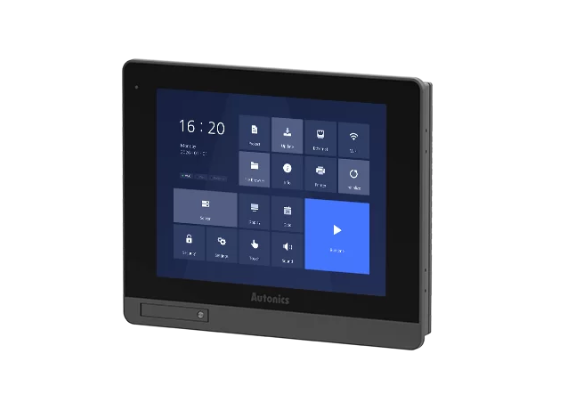

iTP-104-Ex

The Autonics iTP Series is a line of advanced color LCD graphic panel HMIs (human machine interfaces) used to monitor and control industrial processes, facilities, and equipment built from PLCs and control devices; the hazardous-location certified (Ex) models are explosion-proof units built for use in explosive-atmosphere areas certified to Class I/II, Division 2. Powered by a quad-core Cortex-A53 processor at 1.6 GHz with 4 GB of DDR4 memory and 16 GB of eMMC storage, the series drives smooth graphics and responsive screen changes for SCADA and machine-control applications. Display models use a TFT color LCD with an analog resistive touch panel, support 16,777,216 colors, and use a white LED backlight rated for at least 50,000 hours; they are offered in 8.4-inch (800 x 600) and 10.4, 12.1, and 15-inch (1024 x 768) sizes. Screens are configured with the Autonics SCADAMaster-Designer software, which provides an intuitive, user-friendly interface, a modular panel box, easy screen configuration, and a library of thousands of SVG images, and the platform connects directly to databases such as MS SQL Server, MySQL, MariaDB, Oracle, and PostgreSQL for data acquisition, trending, and analysis. Built-in VNC and a web tool allow remote access and monitoring from a PC or mobile device.

Key Features

• Explosion-proof model for use in Class I/II, Division 2 hazardous areas
• Quad-core Cortex-A53 CPU at 1.6 GHz with 4 GB DDR4 memory and 16 GB eMMC storage
• TFT color LCD with analog resistive touch, 16,777,216 colors, and a white LED backlight rated for at least 50,000 hours

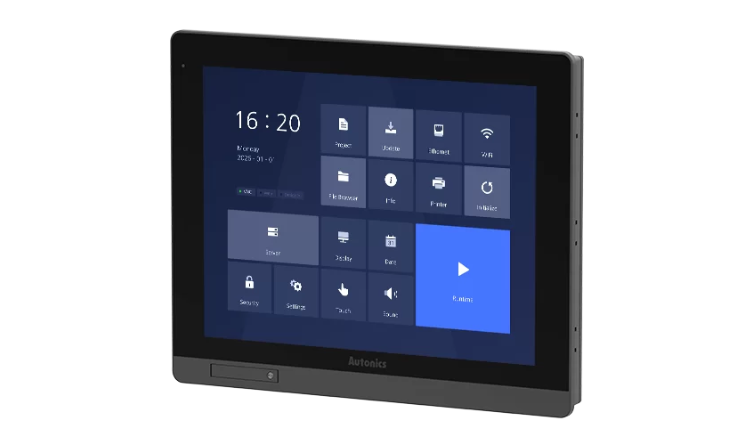

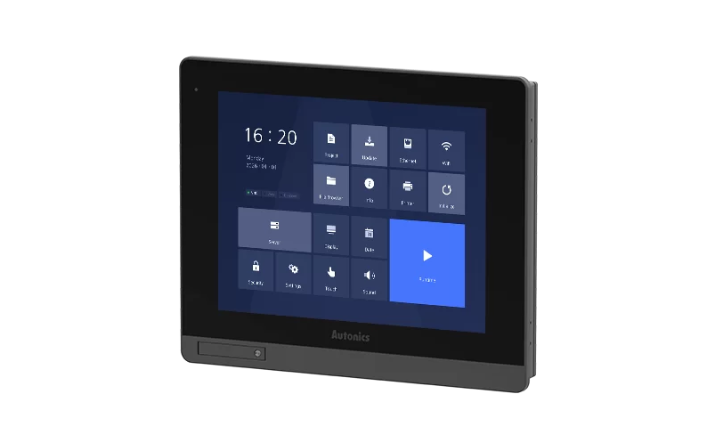

• Available in 8.4-inch (800 x 600) and 10.4, 12.1, and 15-inch (1024 x 768) display sizes
• 24 VDC power supply

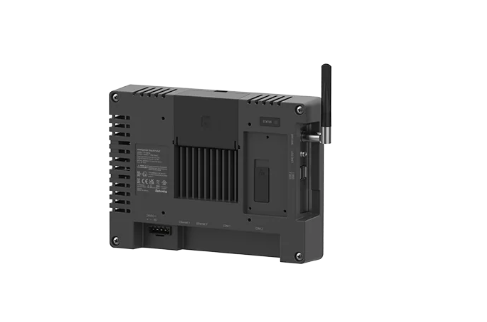

• Dual Gigabit Ethernet (10/100/1000BASE-T), two serial ports (RS-232C/RS-422/RS-485), USB 2.0 and 3.0, and 2.4 GHz Wi-Fi
• SD card support up to 256 GB (SDXC/SDHC)
• SCADAMaster-Designer screen editor with modular panel box and a library of thousands of SVG images
• Connects to multiple databases: MS SQL Server, MySQL, MariaDB, Oracle, and PostgreSQL
• Built-in VNC and web tool for remote access and monitoring from a PC or mobile device
• Magnetic buzzer (≥ 85 dB); aluminum die-cast case; IP66-rated front panel

Certifications

• CE, UKCA, cULus (UL Listed), KC, KCs
• Hazardous-location certified: Class I, Division 2, Groups A, B, C, D, T5; Class II, Division 2, Groups F, G, T85°C
• ATEX / IECEx: Ex ec ic IIC T5 Gc and Ex tc IIIC T60°C Dc
