Fuji Electric
V-SFT-6
V-SFT Screen Configuration Software Version 6, DVD, Hakko Software for V8, V9, TS
$157.50

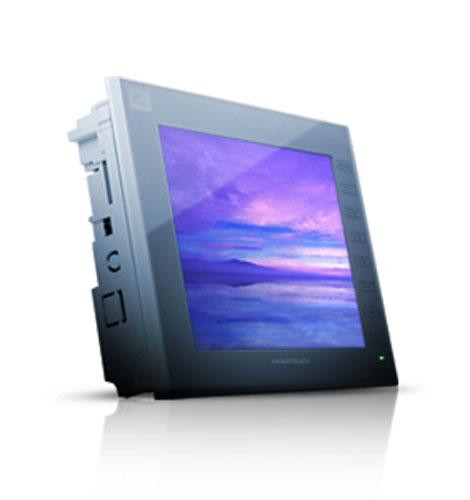

V9060ITD
Alt: HMI V9 Lite, V9060iTD
$967.50
HMI, 5.7" VGA TFT, 64K Color, 24VDC, SD Card Slot, USB Port Type A & B (Mini), LAN
- Minimum Purchase:
- 1 unit
Description
We are happy to announce that we now carry Fuji Electric's line of HMI's:
- MONITOUCH X1 Series
- MONITOUCH HMI V9 Series
- MONITOUCH Technoshot Series
MONITOUCH X1 Series:
- Standard series - features broad FA and IT connectivity and flexibility
- Available in 12.1" or 15.6" Widescreen
- 16.7M Colors
- IP66
- Accessries include V-SFT-6, X1-BT, X1-SS
MONITOUCH HMI V9 Series:
- Includes three options within this series: V9 Lite, V9 Standard and V9 Advanced (designed to replace the V8 series)
- V9 Lite Part Numbers: V9060iTD, V9080iCD, V9100iC/iCD
- V9 Standard Part Numbers: V9080iSD, V9100iS/iSD, V9120iS/iSD, V9150iX/iXD
- V9 Advanced Part Numbers: V9071iWLD/iWRLD, V9101iWLD/iWRLD
- 5.7" to 15"
- UL Certified
- Standard with onboard Ethernet ports and SD card slots
MONITOUCH Technoshot Series:
- All models come standard with two USB interfaces, simple installation and remote monitoring and maintenance capabilities due to the onbaord Ethernet port.
- TS2060Si: 5.7", TFT QVGA, 64K colors
- TS1070Si: 7", TFT WVGA, 64K colors
- TS1100Si: 10.2", TFT WVGA, 65K colors
Features Include:
- Allows remote connection via VNC
- Storage capacity, communication ports
- FTP protocol, One SD card slot provided as standard
- Screen configuration software V-SFT with free updates available online
- Modbus RTU and TCP communication and Master/clave configuration possible
- V-SFT software: a single software to configure all the models in the range
- Rated voltage: 24VDC ±10％
- Ambient temperature: 0～50℃
- Dimensions W*H*D(mm): 182.5×138.8×53.0
- Case color: Light gray (black front housing for black model)
- Material: PC
- Display device: TFT color LCD
- Resolution: 640×480
- Display size: 5.7″
- Colors: 260,000
- Backlight: LED
Technical Information:
- Fuji Monitouch V9060iT Series Product Information
- Fuji Monitouch V9 Series Programmable Operator Interface Brochure
- Fuji Monitouch V9 Series Programmable Operator Interface Catalog
- Fuji Monitouch V9 Series Operation Manual
- Fuji Monitouch V9 Series Setup Manual
- Fuji Monitouch V9 Series Training Manual Beginner's Guide
- Fuji Monitouch V9 Series Training Manual Practical Guide
- Fuji Monitouch V9 Series Troubleshooting / Maintenance Manual
- Fuji Monitouch V9 Series Reference Manual (1)
- Fuji Monitouch V9 Series Reference Manual (2)
- Fuji Monitouch V9 Series Macro Reference
Options & Accessories Technical Data:
- Fuji Monitouch V9 Series Hardware Specifications
- Fuji Monitouch V9 Series Connection Manual (1)
- Fuji Monitouch V9 Series Connection Manual (2)
- Fuji Monitouch V9 Series Connection Manual (3)
- Fuji Monitouch V9 Series Web Machine Interface VPN Brochure
- Fuji Monitouch V9 Series VPN Connection Technical Information
- Fuji Monitouch V9 Series VNC Server Technical Information
- Fuji Monitouch V9 Series Ladder Transfer through VPN Technical Information
- Fuji Monitouch V9 Series Domain Creation for Testing with V-Connect Technical Information
- Fuji Monitouch V9 Series Connectable PLCs Technical Information
- Fuji Monitouch V9 Series Connection with S7-1200/1500 PLC Technical Information
- Fuji Monitouch V9 Series GUR-xx Optional Unit Technical Information
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$22.50
$585.00
$369.00
$675.00
$427.50
$283.50
$895.50
$423.00
$423.00
$99.00
$202.50
$517.50
$508.50
$337.50
$432.00
$337.50
$369.00
$157.50
Fuji Electric
UA-FR
Cable, 1m, for USB-A Port that allows Connection from the Front of the Control Cabinet for V8, V9, V706, V715X, or TS Series
$67.50
$90.00
$36.00
