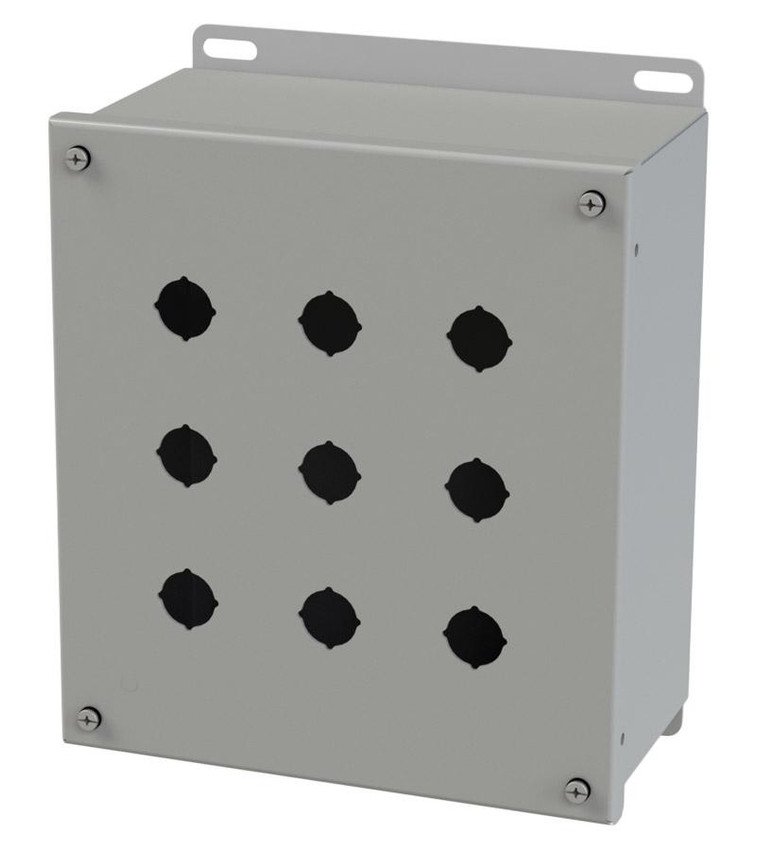

SCE-9PBXI
Alt: PBXI Enclosure
$126.35
Pushbutton Enclosure (PBXI), 9 Hole, 9.5 x 8.5 x 4.75" HWD, Wall Mount, 0.063" Carbon Steel, ANSI-61 Gray, NEMA/UL 4, 12, NEMA 13, IP66, Extra Deep 22.5mm Pushbutton Enclosure
- Weight:
- 9.60 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Features Include:
- 0.063 In. carbon steel
- Continuously welded seams
- Captivated cover screws thread into sealed wells
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
- Immediate removal of cover is still permitted
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back
- Height: 9.50"
- Width: 8.50"
- Depth: 4.75"
- Est. Ship Weight: 8.00 lbs
Technical Information:
