$206.75
SCE-T181205LG
Alt: Modular IMS Industrial Enclosure Series
$2,104.47

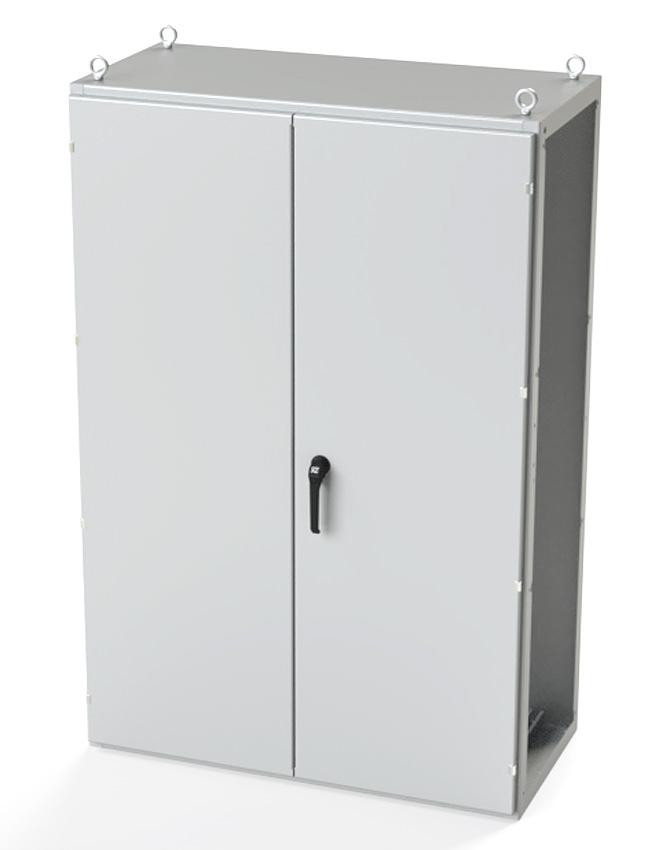

Enclosure 2 Door IMS, 70.87x47.24x18", NEMA/UL 3R, 12
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.104 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Heavy duty lifting eyes anchor into reinforced top.
- Body stiffeners in large enclosures for extra rigidity.

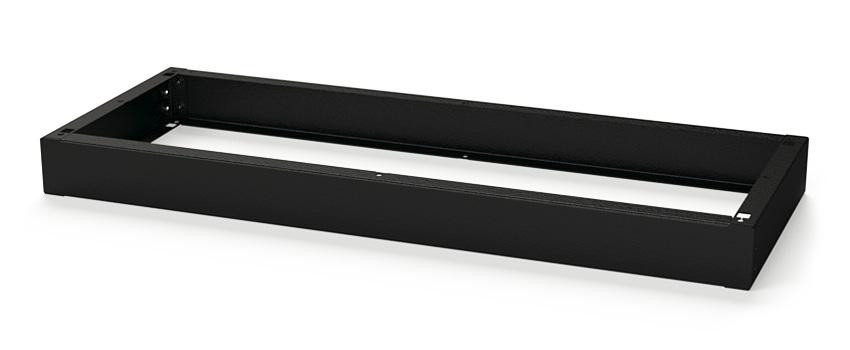

- Mounting holes provided in bottom of enclosure for installing plinth base or securing to the floor.
- Concealed hinges.
- Removable and interchangeable doors.
- Black zinc die cast padlocking handle.
- 3-point latching mechanism.
- Large removable print pocket.
- Mounting channels provided in top and bottom of enclosure.
- Pour in place oil & water resistant gasket
- Mechanical interlock provided on two door disconnect enclosures and all enclosures are provided with provisions for system expansion.
- Ground stud on door & body.
- Gland plate provided in bottom of enclosure.
Technical Information:
- Saginaw Industrial Modular System (IMS) Enclosures Catalog
- Saginaw IMS Two-Door Enclosure Accessories
- Saginaw Product Catalog 2021
- Saginaw Enclosure Design Considerations
Accessory Documents:
- Saginaw IMS Enclosure 2-Piece Subpanel Installation Guide
- Saginaw Dead Front for IMS Enclosure Installation Guide
- Saginaw IMS Enclosure End Plate Installation Guide
- Saginaw IMS Enclosure Filler Plate Installation Guide
- Saginaw IMS Enclosure Plinth Base & SCE-FMA Mounting Angle Kit Installation Guide
- Saginaw IMS Enclosure SCE-SDMI Interlock Kit Installation Guide
- Saginaw IMS Enclosure SCE-MDMI Interlock Kit Installation Guide
- Saginaw IMS Enclosure SCE-TEMG, SCE-EMG & SCE-URA18 Installation Guide
Read more about Enclosures here!
