Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.

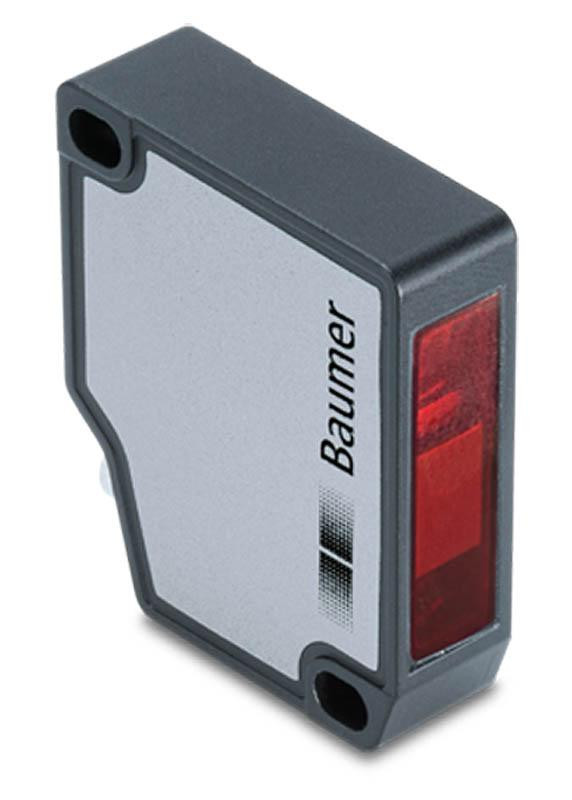

Features Include:
Voltage supply range +Vs: 12 - 28 VDC
Current consumption max. (no load): 50 mA
Measuring Distance: 50 - 100 mm
Measuring frequency: 5000 Hz
Adjustment: Teach-in: Teach-in: button / IO-Link
Power on indication: LED green
Output indicator: LED red
Beam type: Point
Output circuit: Analog and digital
Light source: Pulsed red laser diode
Wavelength: 660 nm
Width/diameter: 40.3 mm
Height/length: 49 mm
Depth: 13.6 mm
Type: Rectangular, front view
Housing material: Die-cast zinc
Front (optics): Glass
Connection types: Connector M8 4 pin
Automatic adjustment of exposure time for precise measurements on changing materials
High immunity to ambient light for reliable measurements regardless of ambient conditions
