42031605026
Alt: 420 3160 5026, EB 160 WT
$18,217.38
Chiller, Indoor Only, IP54, 460VAC, 54500 BTU, RAL 7035 Light Gray (Must Ship via Truck)
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated Voltage: 400/460 VAC, 50/60 Hz ±10 %
- Max Power Consumption: 7.1/14.1 kW
- Max Current Consumption: 18.9/15.1 A
- Starting Current: 45.4/46.9 A
- Control Voltage: 24V AC
- Cooling Capacity (with pump): 16/17.6 kW
- Btu/h Capacity: 54,500
- kW Capacity: 17.6
- Flow Rate (GPM): 37
- Medium: Water/Glycol – 80/20%
- Pump Pressure (psig): 3 bar
- Tank Volume: 19 gal
- Refrigerant type: R410A
- Connections (medium): IG: 1"
- Design Housing/Cover: powder coated: RAL 7035 (light gray)

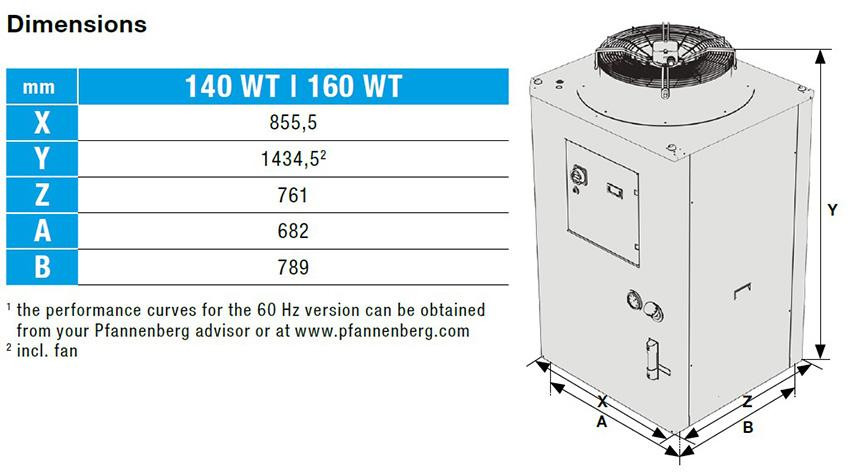

- Dimensions (W x D x H): 33.68 x 29.96 x 60.40 inches
Technical Information:
- Pfannenberg EB 140 WT| EB 160 WT Chillers Technical Data
- Pfannenberg EB 140 WT| EB 160 WT Chillers Dimensional Drawing
- Pfannenberg EB 140/160/180/220 WT Chillers Hydraulic Diagram
- Pfannenberg EB 2.0 ECO Liquid Cooling Chiller Sales Flyer
- Pfannenberg EB 2.0 ECO Liquid Cooling Chiller Operating and Maintenance Instructions
- Pfannenberg EB 2.0 Operating Envelope
- Pfannenberg EB 2.0 Series Chillers Configurations Guide
