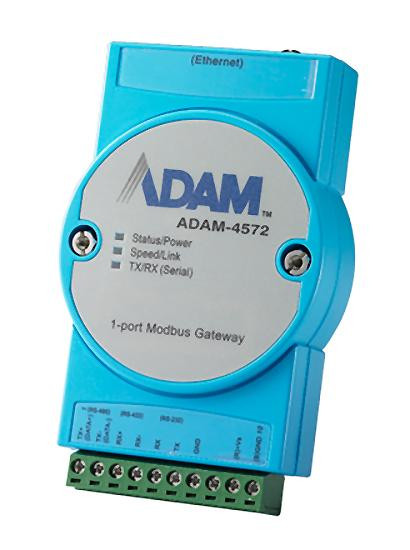

ADAM-4572-CE

Features Include:

• Supports 10/100 Mbps communication speeds
• Allows up to 8 clients to access field data simultaneously
• Supports popular HMI software with Modbus/TCP driver or OPC server
• Provides auto-searching device ID Windows utility
• Automatic RS-485 data flow control
• Easy mounting on DIN-rail or panel
• Surge protection for RS-485 and power line
• Supports Modbus/ASCII, RTU Protocol to control devices
• Dimensions (W x H x D): 70 x 112 x 25 mm
• IP Protection Rating: IP30
• Power Consumption: 2.5W
• Power Operating Current: 0.3A @ 12 V
• Power Input (DC): 10 ~ 30 VDC

Technical Information:

• Advantech ADAM-4572 1-Port Modbus Gateway Technical Data
• Advantech ADAM-4000 Series User Manual
• Advantech ADAM-4000 Series Access Port Instructions
• Advantech ADAM-4000 Series AIO Calibration Instructions
• Advantech ADAM-4000 Series Reconnection Instructions
• Advantech ADAM-4000 Series DO Voltage/Current Datasheet
• Advantech ADAM-4000 Series Tolerance Range Datasheet
