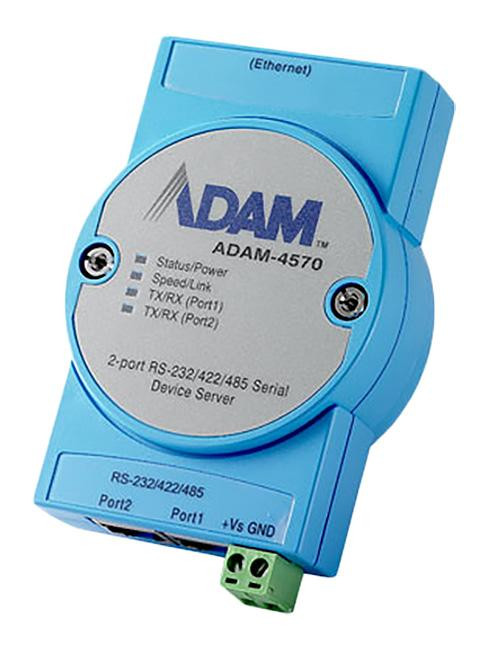

ADAM-4570-CE

Features Include:

• Power Consumption: 2.5W
• Power Input (DC): 10 ~ 30 VDC
• Power Operating Current: 0.3A @ 12 V
• Dimensions (W x H x D): 70 x 112 x 25 mm
• IP Protection Rating: IP30
• RJ-45 Port Connector Type: RJ-45, 1-Port
• Serial Port Connector Type: RJ48, 2-Port
• Supports RS-232/422/485 serial communications
• Supports baud rate up to 921.6 kbps
• Allows a max. of 5 hosts to access one serial port
• Allows a max. of 16 hosts to be accessed as TCP client mode
• Provides COM port redirection (Virtual COM), TCP and UDP operation modes
• Provides 10/100 Mbps auto-sensing Ethernet port
• Supports auto re-connection function
• Supports Windows 2000/XP/Vista drivers
• Built-in 15 KV ESD protection for all serial signals
• Automatic RS-485 data flow control

Technical Information:

• Advantech ADAM-4571/L/4570/L Series Serial Device Server Specifications
• Advantech ADAM-4000 Series User Manual
• Advantech ADAM-4000 Series Access Port Instructions
• Advantech ADAM-4000 Series AIO Calibration Instructions
• Advantech ADAM-4000 Series Reconnection Instructions
• Advantech ADAM-4000 Series DO Voltage/Current Datasheet
• Advantech ADAM-4000 Series Tolerance Range Datasheet
