Pepperl+Fuchs
816456
Photoelectric Thru-Beam Sensor (Receiver), Returns of This Item Must Be Approved by Manufacturer
$153.44
We pause this Memorial Day to honor and remember those that gave their lives in service to our country.
Our offices will close at 1 p.m. on Friday, May 22nd and reopen on Tuesday, May 26th.
814596
Alt: OBE1500-R3F-S-0.2M-V31-L, Non-Cancellable, No Returns per Manufacturer
$138.88

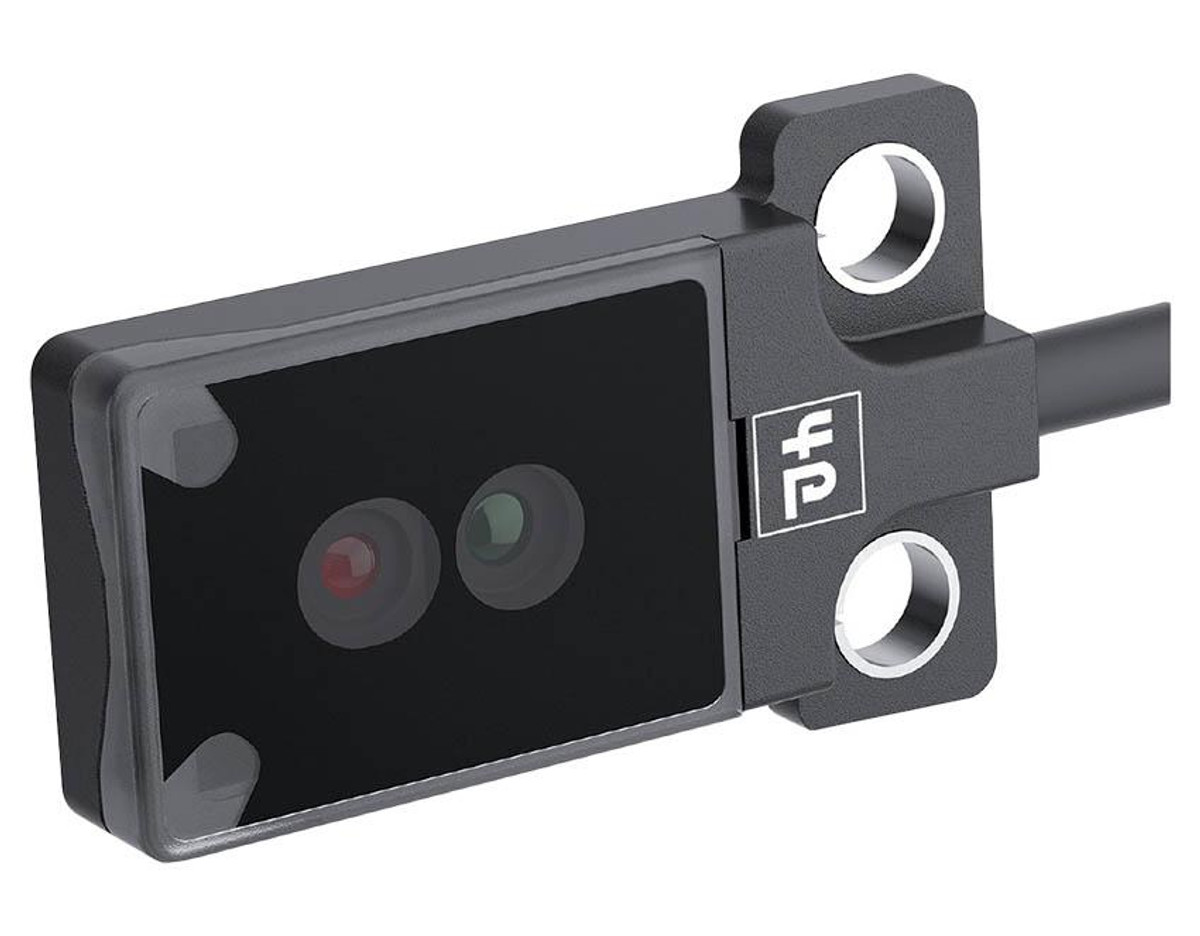

Photoelectric Thru-Beam Sensor (Emitter), Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Input Operating voltage: 12 - 24 V
- Input No-load Supply Current: Emitter: ≤ 10 mA
- Output Switching Type: NO contact / dark-on
- Signal Output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector
- Output Switching Voltage: max. 30 V DC
- Output Switching Current: max. 50 mA, resistive load
- Object Detection Size: Size typ. starts from 0.7 mm; typ. from 0.3 mm (after teach-in)
- Diameter of the light spot: approx. 20 mm at a distance of 1.5 m
- Opening angle: approx. 1°
- Effective detection range: 0 - 1500 mm
- Threshold detection range: 2100 m
- Light Type: modulated visible red light, 680 nm
- Housing Width: 16 mm
- Housing Height: 25.5 mm
- Housing Depth: 4.1 mm
- Degree of Protection: IP67
- Connection: 200 mm fixed cable with 4-pin, M8x1 connector
- Housing Material: PC (Polycarbonate) and Stainless steel
- Optical Face Material: PMMA
- Cable: PUR
- Very flat design for direct mounting without mounting bracket
- DuraBeam Laser Sensors - durable and employable like an LED
- Teach-In Input Switching Threshold
- High detection ranges achievable
- Detection of small parts or flat objects from 0.3 mm
Technical Information:
- Pepperl+Fuchs OBE1500-R3F-S-0.2M-V31-L Thru-Beam Sensor Technical Data
- Pepperl+Fuchs OBE1500-R3F-S-0.2M-V31-L Thru-Beam Sensor Installation Manual
- Pepperl+Fuchs Sensors and Systems Product Overview for Factory Automation
- Pepperl+Fuchs IO-Link Offline Parameterization User Instructions
- Pepperl+Fuchs Type Designation Code For Photoelectric Sensors
- Pepperl+Fuchs Industrial Sensors Quick Select Product Guide Catalog
