I51AP137A00001003S
Alt: 16559178
$278.53
VFD, 0.37kW, 0.50hp, 120VAC, 1/N/PE, No Safety Technology, No Extension Box, Without Diagnostic Module, Standard I/O with Modbus RTU, NEMA 1, IP20, i510 Protec Series, Keypad Purchased Separately: I5MADK0000000S
- Weight:
- 3.10 LBS
- Minimum Purchase:
- 1 unit
Description

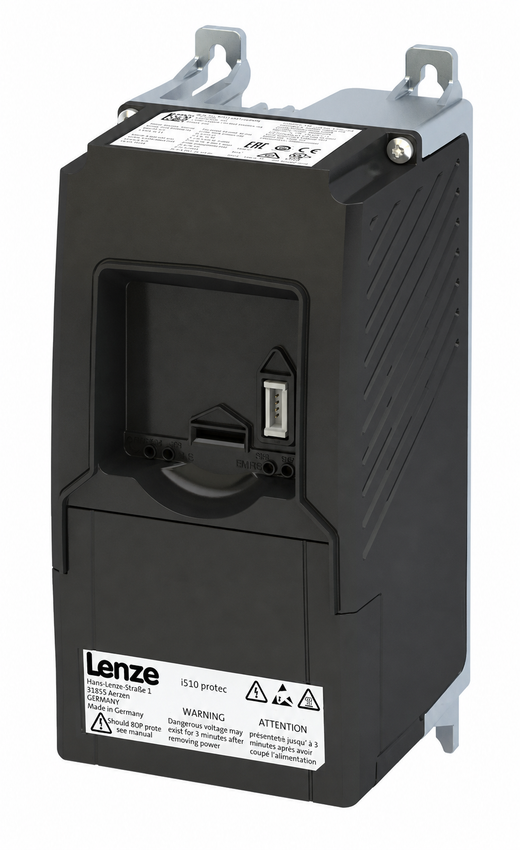

The Lenze i510 protec frequency inverter uses the same proven technology as the Lenze i510 cabinet drive in an adapted housing, making it a practical choice when control cabinet space is limited or the drive needs to be mounted close to the motor. In the USA, its NEMA/UL Type 1 housing permits installation outside the control cabinet. Typical applications include conveyor drives, traveling drives, pumps, and fans.
Key Features
- Power range from 0.5 to 15 hp
- Models for 1-phase 120V and 230V supplies and 3-phase 230V, 400V, 480V, and 600V supplies
- NEMA/UL Type 1 (IP20) housing

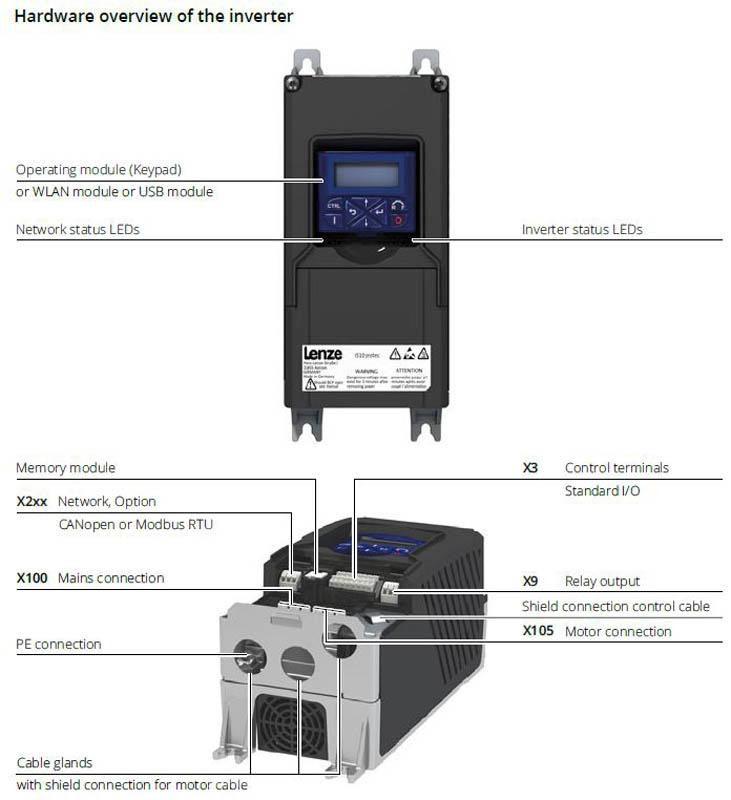

- Standard I/O with 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, and 1 NO/NC relay
- Available with CANopen or Modbus RTU communication
- Versions with keypad, USB module, or WLAN module for easy commissioning
Certifications
- Meets the requirements of the Ecodesign Directive, standard EN IEC 61800-9-2
Resources
- Lenze i510 Protec Frequency Inverter Operating Instructions
- Lenze i510/i550 Protec Frequency Inverter Reference Card
- Lenze i5x0 Series Frequency Inverter Brochure
- Lenze Frequency Inverter Series i500 Video
