Baumer
U500.RA0-GP1B.72CU
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, qTeach, Push-Pull, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
$420.60
U500.PA0-GP1B.72CU
Alt: 11120936
$420.60
Ultrasonic Proximity Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, Push-Pull, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

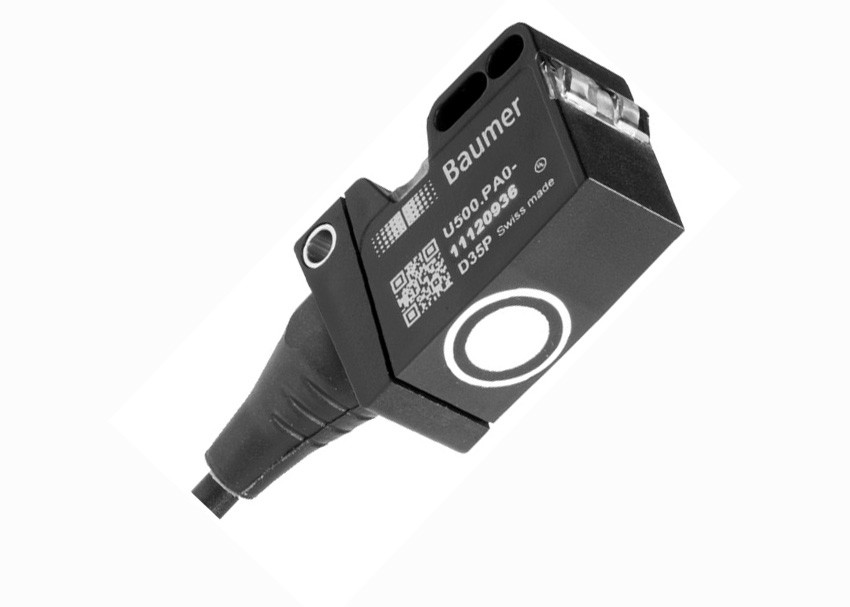

The Baumer U500 ultrasonic proximity sensor detects objects within its scanning range using ultrasound and switches an output.
Key Features
- Scanning range 100-1000 mm or 20-1000 mm depending on model
- Adjustment via qTeach, line-teach or IO-Link depending on model
- Push-pull switching output
- IO-Link depending on model
- Supply voltage 12-30 VDC
- Connection via 2 m PUR cable or M12 5-pin connector depending on model
- 18 x 45 x 32 mm rectangular housing in plastic (ASA, PMMA)
- Operating temperature -25 to +65 °C
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
UR18.PA0-GP1B.7BO
Ultrasonic Proximity Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, Push-Pull, M12 Connector, M18 x 64mm Cylindrical Threaded, Nickel Plated Brass/TR90 Housing, -25 to +70°C, IP67
$526.49
Baumer
U500.RA0-GP1B.72O
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, qTeach, Push-Pull, M12 Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
$403.69
Baumer
U500.DA0-AA1B.72CU
Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 4-20mA/0-10V Voltage/Current Output, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
$488.40
Baumer
U500.DA0-UA1B.72CU
Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 0-10V Voltage Output, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
$488.40
