Baumer
U500.RA0-GP1B.72CU

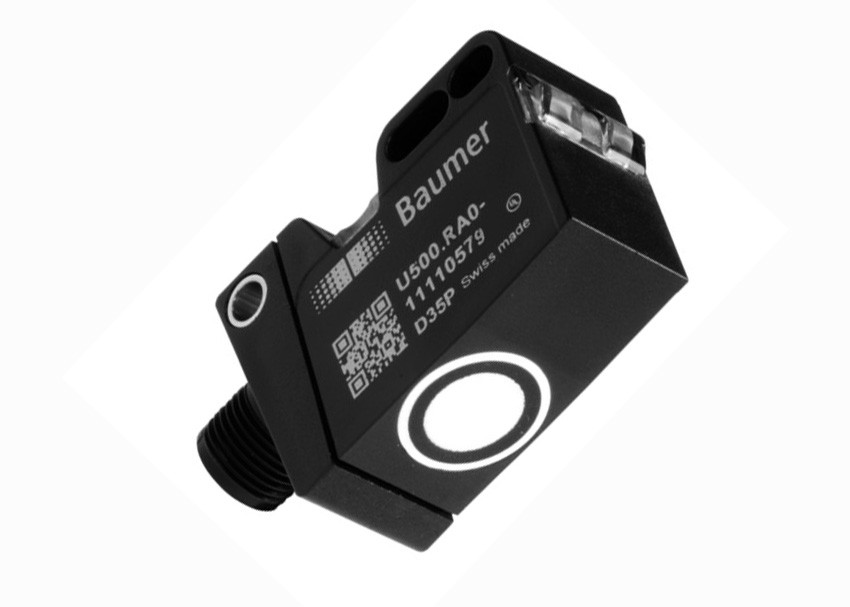

Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, qTeach, Push-Pull, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
$420.60
U500.RA0-GP1B.72O
Alt: 11110579
$403.69
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, qTeach, Push-Pull, M12 Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer U500 ultrasonic retro-reflective sensor works with a reflector positioned within its reflector position range (Sde).
Key Features
- Scanning range 0-1000 mm
- Adjustment via qTeach, line-teach or IO-Link depending on model
- Push-pull switching output
- IO-Link depending on model
- Supply voltage 12-30 VDC
- Connection via 2 m PUR cable, M12 5-pin connector or M12 connector depending on model
- 18 x 45 x 32 mm rectangular housing in plastic (ASA, PMMA)
- Operating temperature -25 to +65 °C
- Protection class IP67
