U500.DA0-AA1B.72CU
Baumer

U500.DA0-AA1B.72CU

Alt: 11127346

$488.40

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 4-20mA/0-10V Voltage/Current Output, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

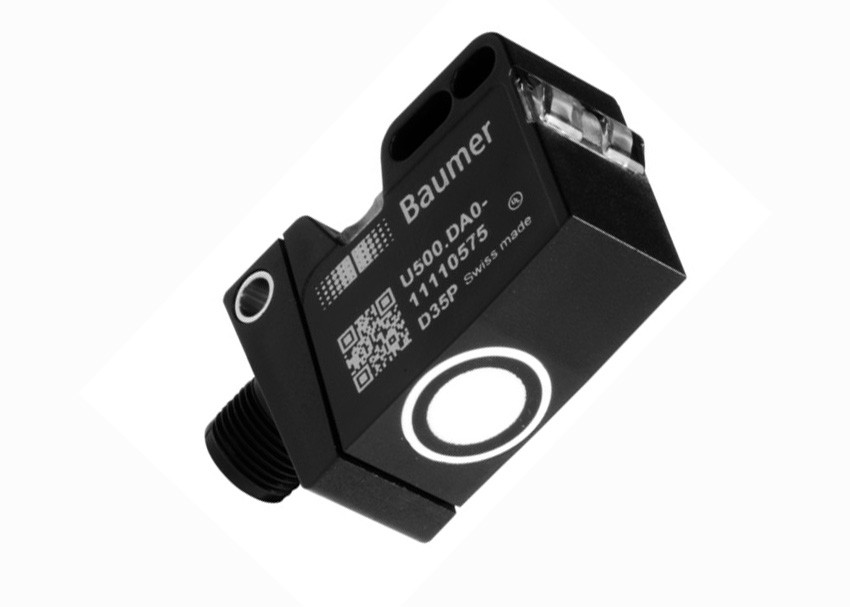

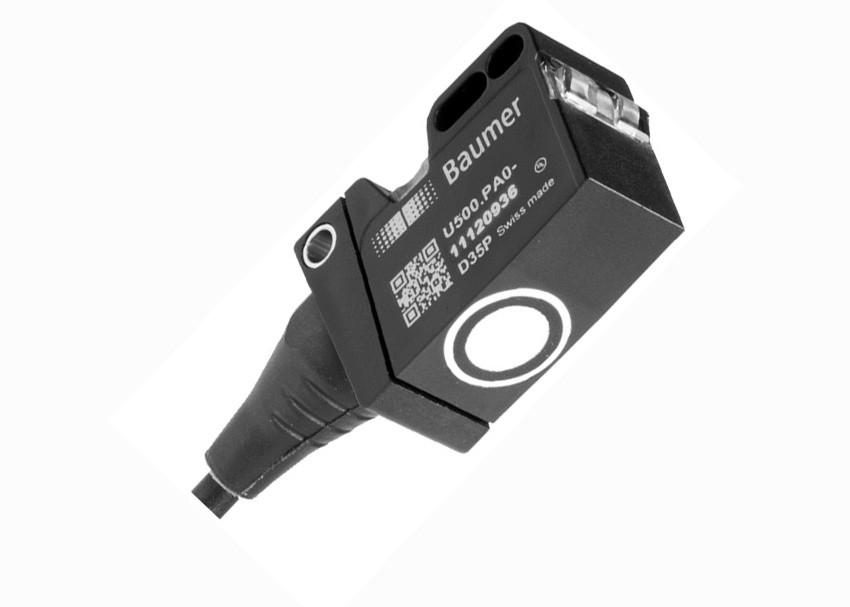

Baumer U500 ultrasonic distance sensor with analog output and teach-in
Description

The Baumer U500 ultrasonic distance measuring sensor measures the distance to an object using ultrasound and provides an analog output signal.

Key Features

  • Scanning range 100-1000 mm or 20-1000 mm depending on model
  • Adjustment via qTeach, line-teach or IO-Link depending on model
  • 0-10V voltage output depending on model
  • 4-20mA current output depending on model
  • 4-20mA/0-10V voltage/current output depending on model
  • IO-Link depending on model
  • Supply voltage 12-30 VDC
  • Connection via 2 m PUR cable, M12 5-pin connector or M12 connector depending on model
  • 18 x 45 x 32 mm rectangular housing in plastic (ASA, PMMA)
  • Operating temperature -25 to +60 °C or -25 to +65 °C depending on model
  • Protection class IP67

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
Available Now!

Baumer

U500.DA0-AA1B.72O

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 4-20mA/0-10V Voltage/Current Output, M12 Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$471.49

Baumer

U500.DA0-IA1B.72CU

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 4-20mA Current Output, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +60°C, IP67

$488.40

Baumer

U500.DA0-UA1B.72CU

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 0-10V Voltage Output, 2m PUR Cable, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$488.40

Baumer

U500.DA0-UA1B.72O

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 0-10V Voltage Output, M12 Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$471.49

Baumer

U500.DA0-IA1B.72O

Ultrasonic Distance Measuring Sensor, 12-30VDC, 100-1000mm Scanning Range Sd, qTeach, 4-20mA Current Output, M12 Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +60°C, IP67

$471.49
