Pepperl+Fuchs
326161-0095
Inductive Proximity Sensor, Flush, 3-Wire DC, 5-36V, 8mm Range, PNP, NO, M12 Plug, -40 to 85°C (-40 to 185°F) Ambient/Storage Temperature, IP68
$125.44
Product image is representative only, please verify specifications.

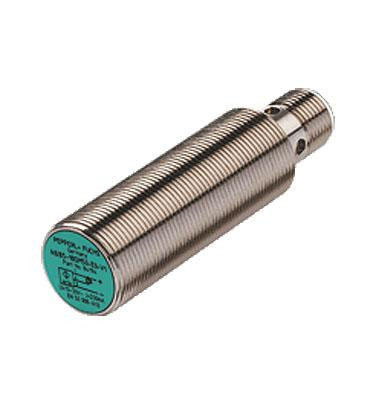

326161-0109
Alt: NBB5-18GM50-E0-V1, (Was 084194)
$97.44
Inductive Proximity Sensor, Ø18mm, Flush, 10-30VDC, 5mm Range, NPN NO, M12 4-Pin, Conn, IP67
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching Function: Normally Open (NO)
- Output Type: NPN
- Rated Operating Distance: 5 mm
- Assured Operating Distance: 0 - 4.05 mm
- Operating Voltage: 10 - 30 V
- Switching Frequency: 0 - 800 Hz
- Operating Current: 0 - 200 mA
- Switching State Indicator: Multihole LED, yellow
- Installation: Flush
- Connection Type: Connector M12 x 1 , 4-pin
- Housing Material/Sensing Face: PBT
