I51BE240F10V11000S
Alt: 16270554 | Limited Stock Savings: 1 unit available at this price
$542.94
Frequency inverter, 3 AC 400/480V, 5hp, Heavy/Light Duty Rated, Keypad Purchased Separately
- Weight:
- 3.70 LBS
- Minimum Purchase:
- 1 unit
Description

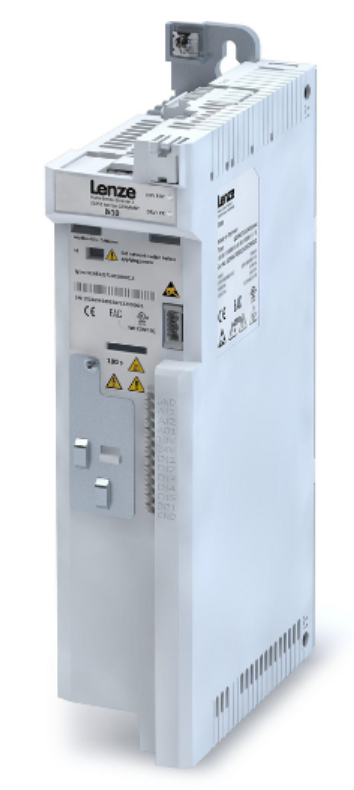

The Lenze i510 cabinet frequency inverter is a compact control cabinet drive with scalable functionality, designed to be versatile, reliable, and easy to use. It is used in conveyor drives, traveling drives, pumps, fans, and agitators, and its slim, zero-clearance design helps conserve panel space.
Key Features
- Power range from 0.33 to 20 hp
- Models for 1-phase 230V supplies and 3-phase 230V, 400V, and 480V supplies
- IP20 design for control cabinet mounting
- Space-saving design 2.26 in wide (up to 5 hp) and 5.13 in deep (up to 15 hp) with zero-clearance side-by-side mounting
- Standard I/O with 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, and 1 NO/NC relay
- Available with CANopen or Modbus RTU communication
- WLAN connectivity options for fast commissioning and convenient diagnostics
Certifications
- Meets the requirements of the Ecodesign Directive, standard EN IEC 61800-9-2
Resources
- Lenze i510 and i550 Cabinet Frequency Inverter Flyer
- Lenze i5x0 Series Frequency Inverter Brochure
- Lenze Frequency Inverter Series i500 Video
