Lenze

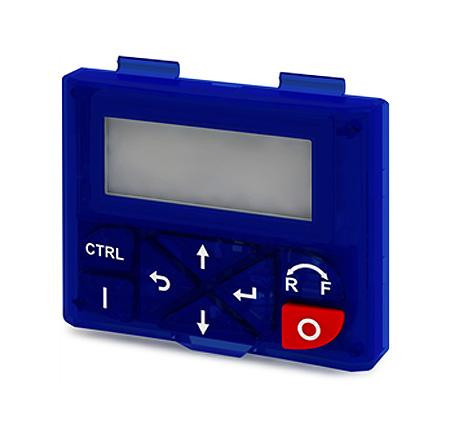

I5MADK0000000S
Keypad for i510 and i550 Drives, You Can Use Optional Keypad, Lenze Smart Keypad app (download) or the EASY Starter for Diagnostics and Parameter Selection/Adjustments.
$50.21
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(1 in stock)

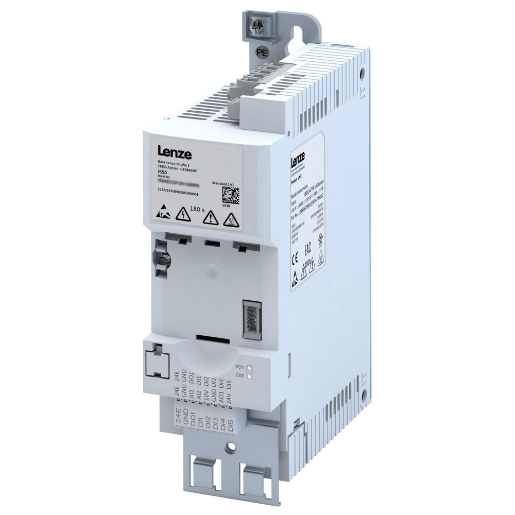

I55AE175F10V11000S
Alt: 16064346. i550 Series
$464.56
VFD, 1hp, 480VAC, 3 Phase, Standard I/O, IP20, i550 Inverter
- Weight:
- 2.78 LBS
- Minimum Purchase:
- 1 unit
Description
The Lenze i550 cabinet frequency inverter is a compact control cabinet drive with scalable functionality across a wide power range. It is used in conveyor, traveling, winding, and hoist drives, extruders, packaging machines, pumps, and fans. For maximum flexibility, the series is available as a complete device or as individual power, control, and safety units.
Key Features
- Power range from 0.33 to 175 hp
- Models for 1-phase 120V and 230V supplies and 3-phase 230V, 400V, and 480V supplies
- IP20 design for control cabinet mounting
- Space-saving design 2.26 in wide (up to 5 hp) and 5.13 in deep (up to 15 hp) with zero-clearance side-by-side mounting
- Standard I/O with 5 digital inputs, 1 digital output, 2 analog inputs, 1 analog output, and 1 NO/NC relay, plus DC bus connection and motor temperature monitoring
- Network options include CANopen, EtherCAT, EtherNet/IP, IO-Link, Modbus RTU, Modbus TCP, POWERLINK, PROFIBUS, and PROFINET
- Optional Safe Torque Off (STO) rated SIL 3 (EN IEC 61508) and Performance Level e (EN ISO 13849-1)
- WLAN connectivity options for fast commissioning and convenient diagnostics
Certifications
- Meets the requirements of the Ecodesign Directive, standard EN IEC 61800-9-2
Resources
- Lenze i510 and i550 Cabinet Frequency Inverter Flyer
- Lenze i5x0 Series Frequency Inverter Brochure
- Lenze Frequency Inverter Series i500 Video
Want to Learn More?
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$35.87
Lenze
I5MASAV000000S
Safety Function STO (Safety Torque Off), For i550 Series, Can Be Retrofitted to i550 Drives; i550-Cxxx/120-1, i550-Cxxx/230-1, i550-Cxxx/230-2, i550-Cxxx/230-3, i550-Cxxx/400-3
$57.39
$135.64
Lenze
EZAEDE1001
Memory Module Copier, Please Review Product Information Carefully for your Specific Application
$240.02
Lenze
I5MADR0000000S
External Keypad Mount for i510 and i550 Drives, No Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$107.60
Lenze
I5MADR0000001S
External Keypad Mount for i510 and i550 Drives, 3m Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$129.11
$18.08
Lenze
I5CA5C02000VA1000S
Control Unit, CANopen, Std I/O, EPM Memory Module, Use with i550 Power Unit, 230/240V or 400/480V
$114.78
Lenze
EZAMBHXM014/M
Motor Shield Plate Kit, (.33hp, - 3hp) 5 Pack, Compatible with i510 and i550 Drives
$22.95
