ODP-2-42100-3HF4B-MN
Alt: Optidrive P2 Series
$2,967.36
VFD, 10hp, 7.5kW, 30A, 200-240V, 3 Phase, EMC Filter, TFT Display, Internal Brake Transistor, IP66 Switched Outdoor, Frame Size 4: 14.17 x 9.45 x 10.67" (360 x 240 x 271mm) (HWD)
- Minimum Purchase:
- 1 unit
Description
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
All P2 series 3 phase input rated drives can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.
If advanced pump features are required, the P2 series firmware can be changed to 'eco' firmware - this must be done prior to shipping, please put a note on your order that this is needed.
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
This series is available from 1 to 400 horsepower and from 200 to 600V, single or 3 phase input.
Additional features:
- 150% overload for 60 seconds
- 200% overload for 4 seconds
- Simple PLC functionality
- Built-in EMC filter
- Available in IP20, IP66 (with or without disconnect) or IP55
- Low ambient operation (-10°C)
- Modbus RTU and CANopen are standard
- Dedicated hoist mode
- Multiple control modes
This series is ideal for cranes, hoists, lifts, extruders, conveyers, pumps and mixers.
Features Include:
- Supply Voltage: 200-240 V
- Input Phases: 3
- Supply Current Continuous: 36.4 A
- Supply Fuse or MCB (Type B): 50 A
- Motor Output Rating: 7.5 kW (10 HP)
- Output Voltage: 0 – Supply Voltage
- Output Current: 30 A
- Max Motor Cable Length: 100 m (328 ft)
- Factory Build Options
- EMC Filter: Internal EMC
- Brake Transistor: Internal
- Enclosure: IP66 Switched Outdoor
- Display: TFT Display
- PCB Coating: Standard

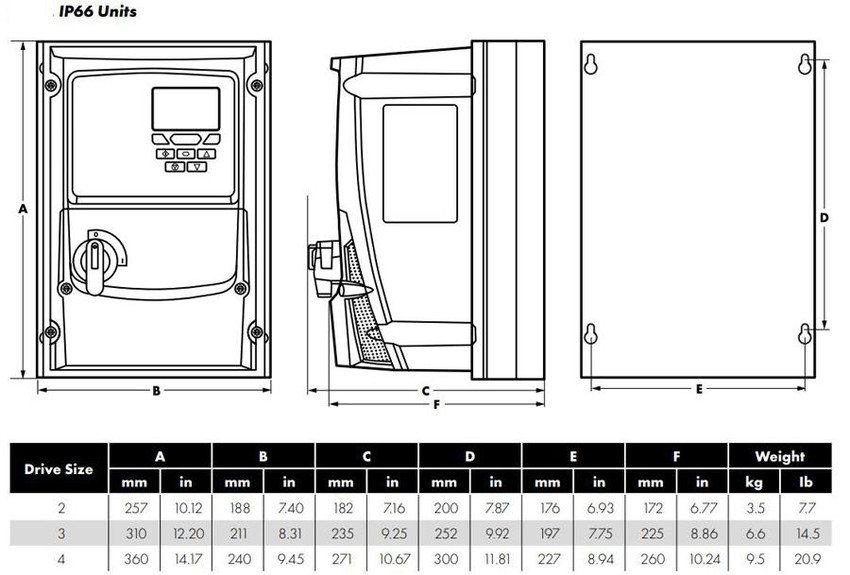

- Frame Size: 4
- Height: 360 mm (14.17 in)
- Width: 240 mm (9.45 in)
- Depth: 271 mm (10.67 in)
