Micron Transformers

B075-2001-1

Alt: ImperviTRAN Series

$101.25

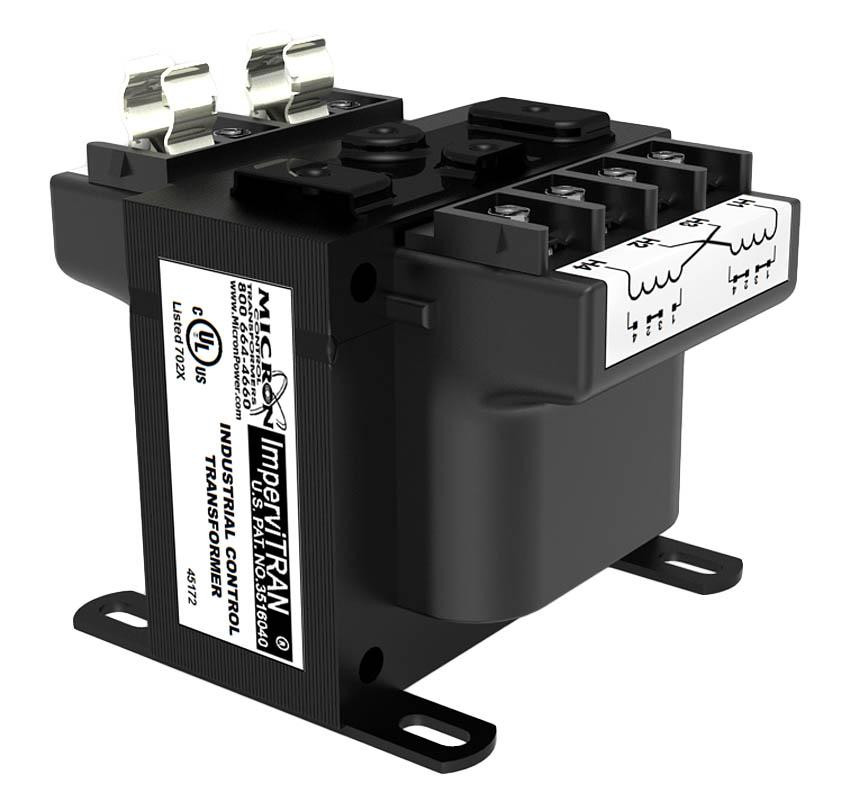

Transformer, 75VA, Primary: 200/208, 220/230/240, 440/460/480VAC, Secondary: 23/110, 24/115, 25/120Vac, 50/60 Hz, Temperature Class 105C, SEC Fuse Clips , UL/cUL, ImperviTRAN Series

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, please note that Micron is quoting as long as 17 to 21-week deliveries on new orders (items may arrive sooner). We are happy to try to offer similar transformers with shorter lead times!
B075-2001-1
B075-2001-1
B075-2001-1
B075-2001-1
Description

Features Include:

  • Primary Voltage: 200/220/440, 208/230/460, 240/480
  • Secondary Voltage: 23/110, 24/115, 25/120
  • Rated V.A.: 75
  • Rated Frequency: 50/60
  • Fusing Capability: Secondary Fusing
  • Fusing Detail: Secondary Fuse Clips
  • Insulation Class: 105
  • Estimated Weight: 5.5 lbs
  • Has built in mounting plate for easy install of optional primary fuse block
  • Has molded-in terminals and terminal barriers
  • Terminals have size #10-32 phillips slotted screws
  • Meets UL and cUL
