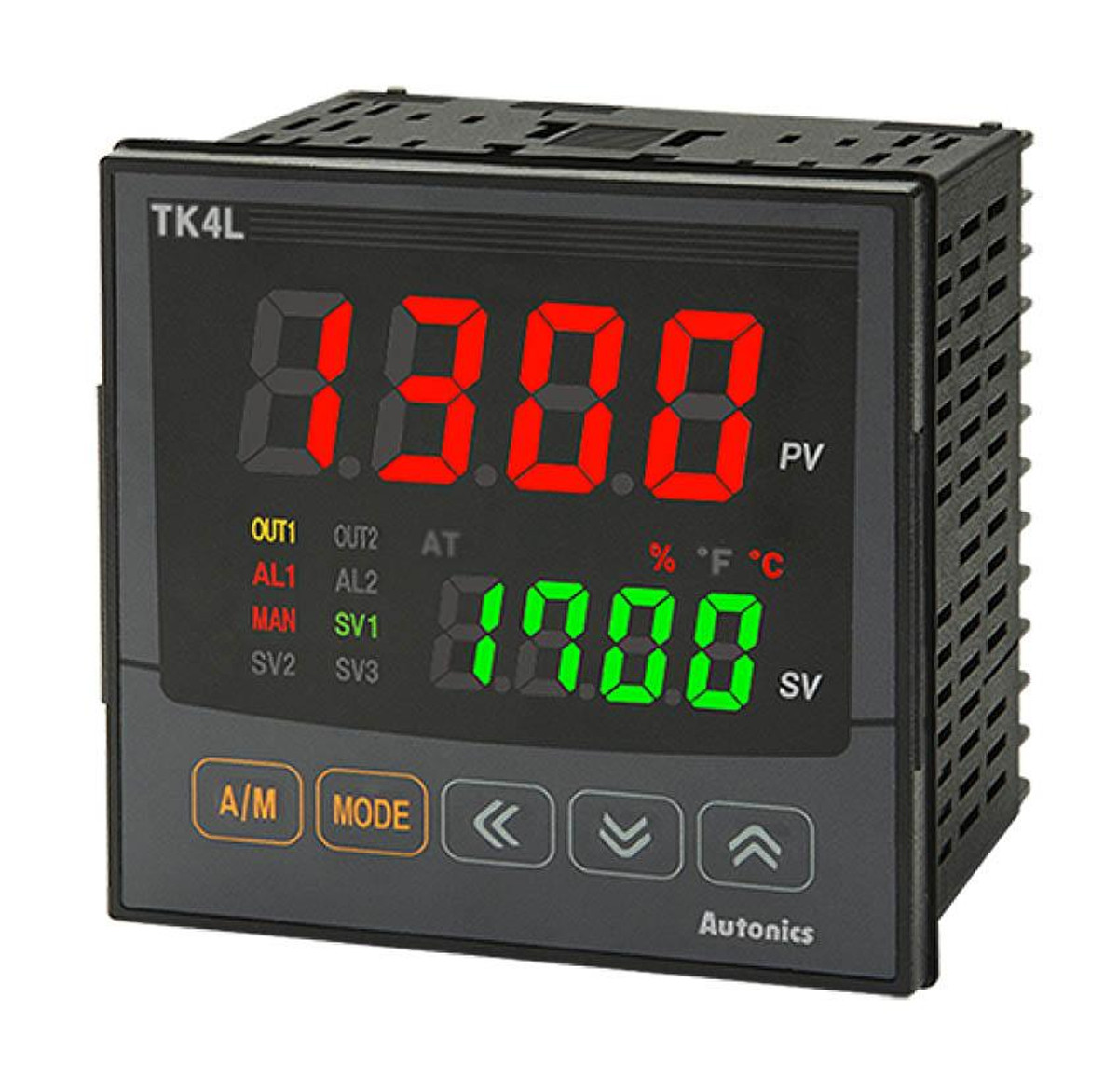

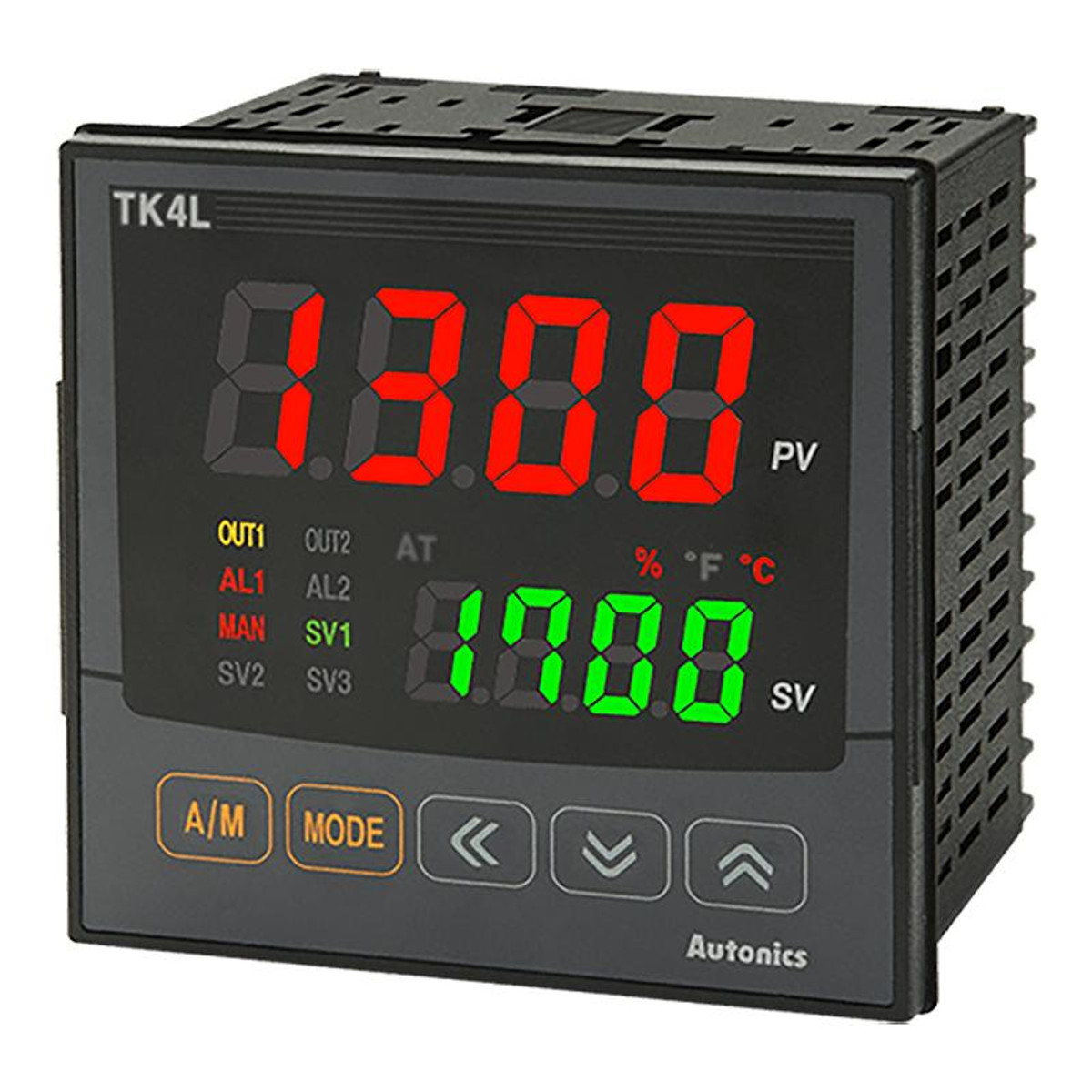

TK4L-14SN

Termp Control, PID, 96x96mm, DIN, SSR Out1,

Features Include:

• Display method : 4-digit 7-segment LED
• Control method : ON/OFF control, P, PI, PD, PID control
• Sampling cycle : 50ms
• Control output 1 : SSR drive(11VDC ) [ON/OFF, phase, cycle]
• Option output : Alarm 1
• Power supply : 100-240VAC~ 50/60Hz
• Protection structure : IP65(front panel)

Input specification:

• Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
• RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
• Analog: 0-100mV, 0-5V, 1-5V, 0-10V
• 0-20mA, 4-20mA

Technical Information:

• Autonics TK Series Temperature Controllers Catalog
• Autonics TK Series Temperature Controllers User Manual
• Autonics TK Series Temperature Controllers Instruction Manual
• Autonics TK Series User Manual for Communication
