V7-W4
Sprecher and Schuh

V7-W4

$1.45

Terminal Block, Feed-Through, 4mm² (22-10 AWG), 30A UL, 600VAC/VDC, 1 Circuit, 6mm Wide, Gray, Screw Clamp, DIN Rail Mount, V7 Series

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

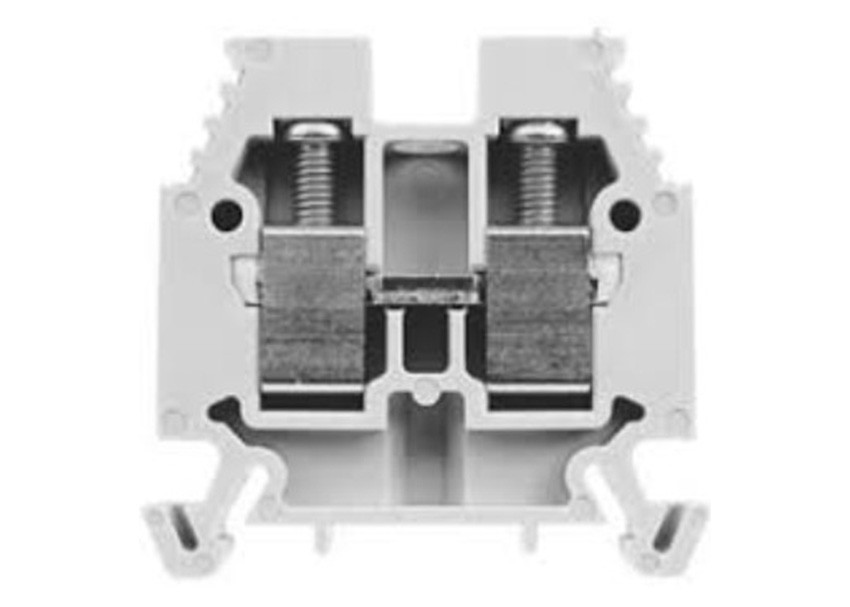

6mm V7 feed-through terminal block, 30A UL
Description

The Sprecher + Schuh V7 IEC terminal block series is built around easy wiring, secure connections, and durability for control panel wiring. Feed-through blocks mount on DIN rail and use stainless steel clamping screws with nickel-plated current bars, while a cone-shaped wire guide helps speed conductor insertion.

Key Features

  • Feed-through screw terminal blocks for DIN rail mounting
  • Stainless steel screws and nickel-plated current bars
  • Polyamide 6.6 housing rated for 90°C continuous and elastic down to -40°C
  • Recessed metal parts for a touch-safe design
  • Rated 600V AC/DC (UL) and 800V (IEC)
  • Matching V7 end barriers, end anchors, and center jumpers available

Certifications

  • UL Recognized (UL 1059)
  • CSA certified (C22.2 No. 158)
  • CE
  • IEC 60947-7-1
