530BRC-36MA
530BRC-36MA
Dart Controls

530BRC-36MA

Alt: 500, 530 Series

$766.40

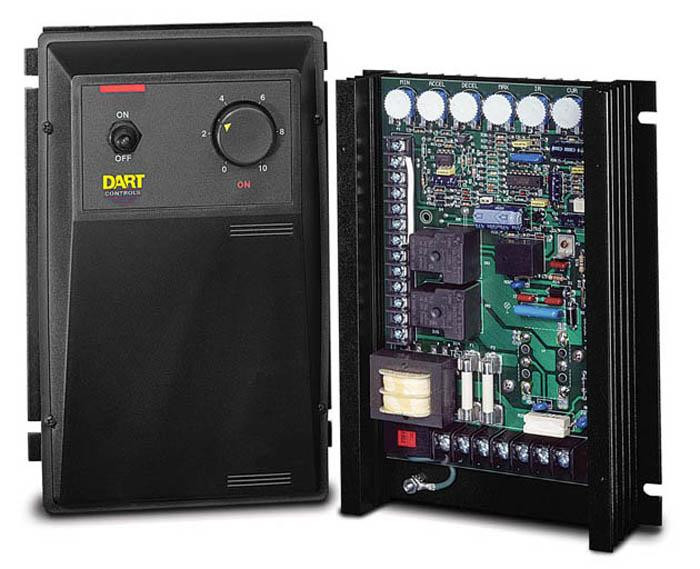

Speed Controller with Brake, 1/8 thru 2.0hp Dual Voltage Relay Chassis with Forward-Reverse with Heavy Duty Dynamic Brake and Zero Speed Detection, (-36MA Option is 120 Volt)

Minimum Purchase:
1 unit
Adding to cart… The item has been added
530BRC-36MA
530BRC-36MA
Description

Features Include:

  • Dual 120/240 VAC, 50/60Hz via slide selector switch
  • Adjustable horsepower settings
  • Barrier terminal strip
  • Packaged bridge supply (fullwave)
  • 1% speed regulation; ±1/2% with tach feedback
  • Adjustable Minimum speed
  • Adjustable Maximum speed
  • Adjustable IR Compensation
  • Adjustable Linear Acceleration (0.3 to 12 sec.)
  • Adjustable Linear Deceleration (0.6 to 12 sec.)
  • Adjustable Current Limit
  • Line voltage compensation
  • 5K ohm speed pot, dial and knob included
  • 50:1 speed range
  • Overload capacity: 200% for one minute
  • Transient voltage protection
  • Inhibit circuit
  • Enclosed models rated NEMA 4/12
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
530BRC

Dart Controls

530BRC

DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/8 to 1hp 120VAC/90VDC, 1/4 to 2hp 240VAC/180VDC, 10ADC Current, DC Drive

$543.20
530BRE-36MA

Dart Controls

530BRE-36MA

DC Speed Control, Enclosed NEMA 4, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/8 to 1hp 120VAC/90VDC, 1/4 to 2hp 240VAC/180VDC, 10ADC Current, DC Drive, Anti-Plug/Zero Speed Detect Relay with Dynamic Brake and Heavy Duty Dynamic B

$862.40
