The 65 series is a low voltage DC speed control that is offered in a few different models:
65E10/20 series are compact PWM motor speed control for low voltage applications. Rated for 10 or 20 amps, 12-48VDC.
65E40/60 series are compact PWM motor speed control for low voltage applications rated to 2000W, rated 12-36VDC in either 40 or 60 amps.
The 65E is considered especially useful in portable equipment and solar powered applications.
Lithium battery technology has caused an explosion in the development of low voltage battery powered options for traditionally line voltage powered equipment.
Marshall Wolf Automation is an authorized Dart Controls distributor.
12-48VDC operating range in the same control
Supply Voltage and Current Limit status LED’s
Current Limit shutdown and output
Higher efficiency – Up to 60+% less voltage drop

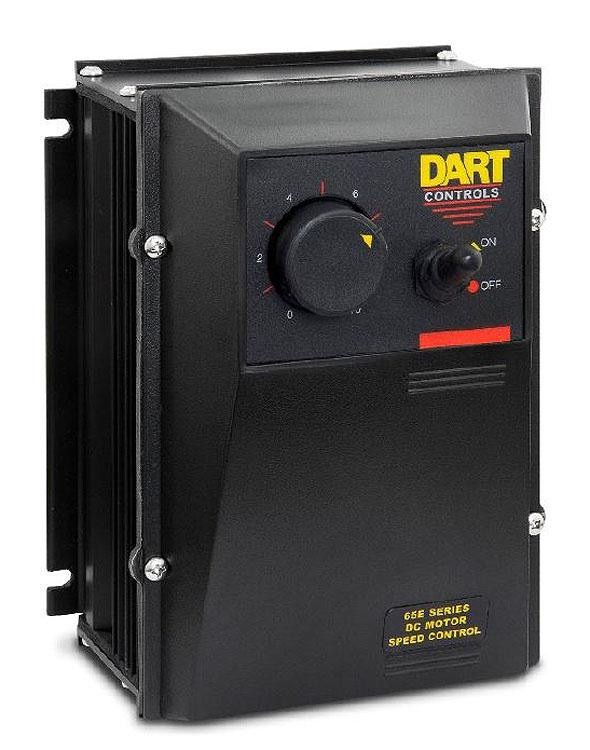

NEMA 4X enclosed model for both 10A and 20A applications
Under Voltage Lockout (option) protects from battery deep cycle discharge
Smooth, quiet 18kHz switching
NEMA 4X enclosed models
Saves battery charge for longer operation / life
High efficiency MOSFET's reduce voltage drop
Speed regulation is ±1% of base speed
Adjustable MAX and MIN speed; IR COMP; CUR LIM; ACCEL
