8824211200
Alt: Solid State Module SSR 1P-200A-480V-NDP3-180 + Fan
$302.00

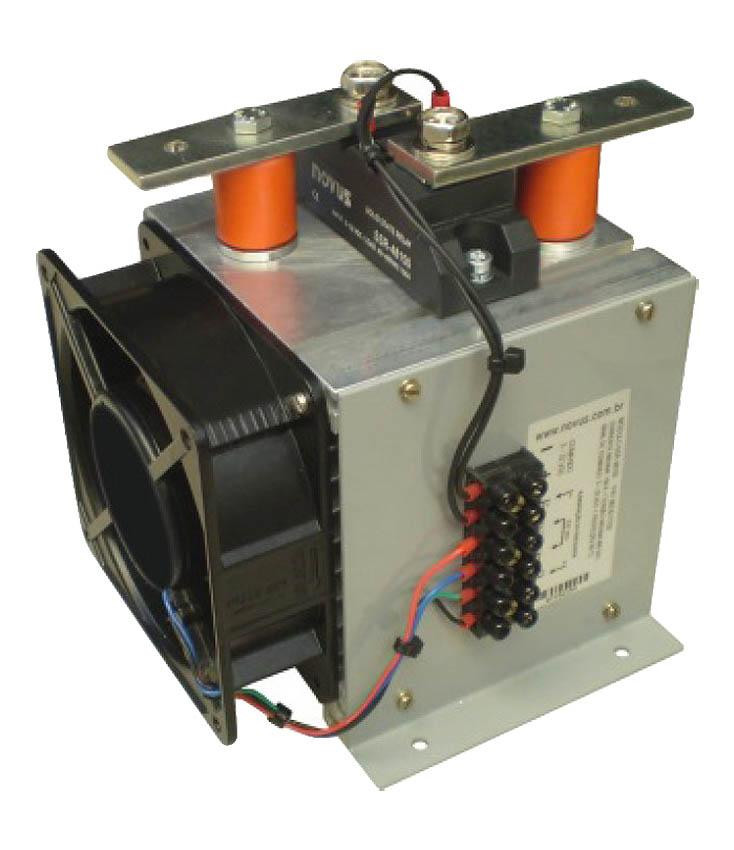

Solid State Module with Fan, 1 Phase, SSR 1P-200A-480V-NDP3-180 + Fan
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Maximum voltage: 480 VAC
- Load Voltage: 40 to 480 V rms
- Load Current: 200 A rms
- Voltage Drop: 1.6 to 1.8
- Leakage Current: < 5.0 mA
- Control Voltage: 3 to 32 Vdc
- Control Current: 6 to 20 mAcc
- Frequency: 47 to 63 Hz
- LED status indicator
- Internal snubber for dv/dt protection
- Trigger in zero crossing
- High switching speed
- Heatsink suitable for rated current
- Built-in fan
- Internal overheating protection (80 °C)
- The required connections are already made
- Optical isolation between command and power
- High noise immunity
- Requires minimum power for operation
- Does not generate EMI or IRF
