Sprecher and Schuh
PCEC-147-600V-120V
PCEC Hydraulic Elevator Softstarter, 120V Control Voltage (50/60 Hz)
$4,349.89
PCEC-074-600V-120V
$1,818.21
Soft Starter Panel, Hydraulic Elevator, 74A, 120VAC Control, PCE Controller with CA7-43 Fault Contactor, Pre-Wired Harness, Delta 24.7-74A (50hp@480V), Line 14.3-43A (30hp@480V)
- Weight:
- 14.50 LBS
- Minimum Purchase:
- 1 unit
Description

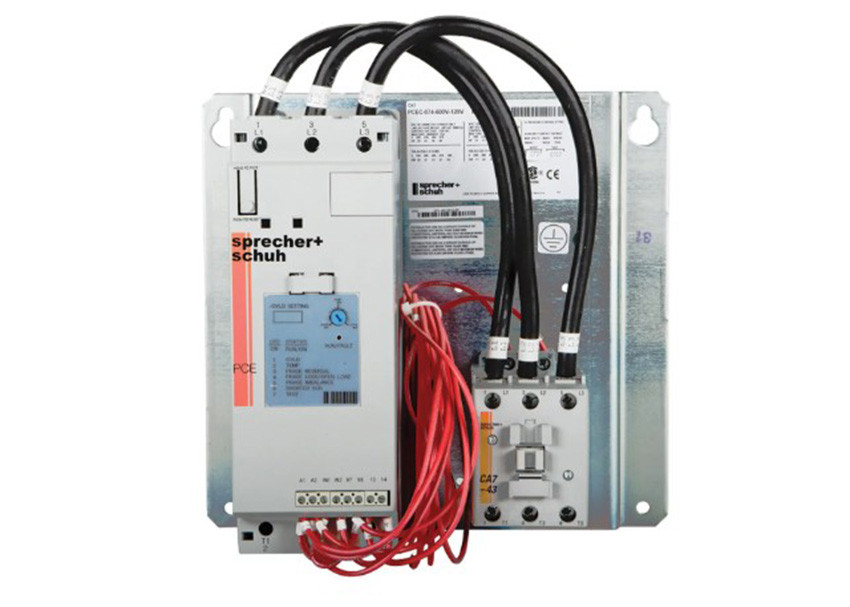

The Sprecher + Schuh PCEC hydraulic elevator softstarter panel combines a PCE softstarter and a factory-coordinated fault contactor on one mounting plate with a pre-wired control harness. Both components are factory tested, and the plate's mounting holes match many standard Wye-Delta electromechanical starter panels, which makes the PCEC a straightforward retrofit for hydraulic elevator controllers.
Key Features
- PCE softstarter and CA7 fault contactor on a common mounting plate
- Pre-wired control harness with approximately 3 ft (1 m) flying leads
- 120VAC control voltage
- Ships in DELTA (6-wire) connection mode; LINE (3-wire) connection is field configurable
- Built-in selectable Class 10, 15, or 20 overload relay with SCR bypass on all three phases
- Rated 80 starts per hour at 50% duty cycle (160 calls per hour) for hydraulic elevator duty
- Motor FLA must fall within the specified overload range
Certifications
- UL and cUL listed as solid state motor controllers (UL 508, CSA C22.2 No. 14)
- UL and cUL listed as elevator controllers (UL 508, CAN/CSA B44.1)
