Sprecher and Schuh
PCE-147-600V
Soft Starter, Hydraulic Elevator, Open Controller, 147A, 200-600VAC 3 Phase, Delta 49-147A (100hp@480V), Line 28.3-85A (60hp@480V), Built-In SCR Bypass, Class 10/15/20 Overload
$2,769.27
PCE-074-600V
$1,584.06
Soft Starter, Hydraulic Elevator, Open Controller, 74A, 200-600VAC 3 Phase, Delta 24.7-74A (50hp@480V), Line 14.3-43A (30hp@480V), Built-In SCR Bypass, Class 10/15/20 Overload
- Weight:
- 7.50 LBS
- Minimum Purchase:
- 1 unit
Description

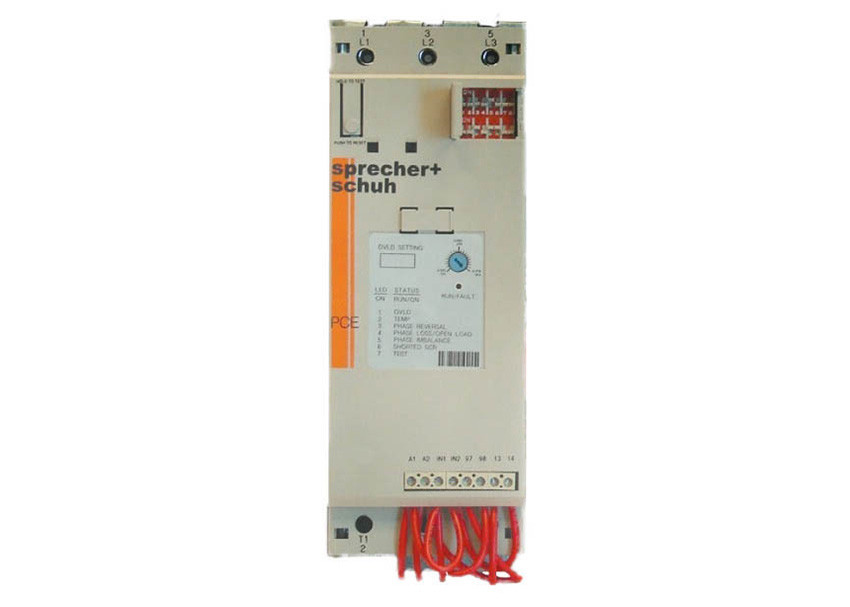

The Sprecher + Schuh PCE hydraulic elevator softstarter is a solid-state controller for the motors that drive hydraulic elevators and escalators. A stepless ramp from zero to full speed reduces current surges on weak electrical systems and lowers starting torque on the hydraulic system, helping meet codes that require reduced-voltage starting without the voltage and current spikes of electromechanical Wye-Delta starters.
Key Features
- For standard three-phase squirrel-cage induction motors, including 3 or 9 lead and 6 or 12 lead Wye-Delta motors
- Line or inside-the-delta control
- 200-600VAC three-phase supply
- Built-in selectable Class 10, 15, or 20 overload relay with manual or automatic reset
- SCR bypass on all three phases
- DIP switch setup and LED fault diagnostics
- Fault and auxiliary NO relay contacts; one additional auxiliary contact block mounts on the right side
- Rated 80 starts per hour at 50% duty cycle (160 calls per hour) for hydraulic elevator duty
- Operating temperature 0 to 50°C (32 to 122°F) open
Certifications
- UL and cUL listed as solid state motor controllers (UL 508, CSA C22.2 No. 14)
- UL and cUL listed as elevator controllers (UL 508, CAN/CSA B44.1)
