101147467
Alt: AZ17-11ZRK-2243-1-5M, AZ 17-11ZRK-2243-1 5,0M
$145.00

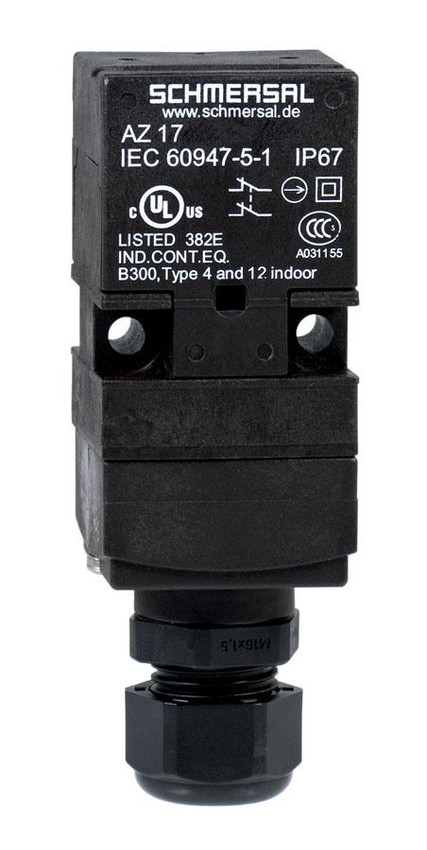

Safety Switch, with Separate Actuator
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal has a wide range of safety interlock switches with separate actuators:
AZ15 Series:
- Plastic enclosure
- 52mm x 75mm x 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16 Series:
- Thermoplastic enclosure
- 52mm x 90mm 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16ZI Series:
- Above, however, coding level 'High' according to ISO 14119
AZ17 Series:
- Thermoplastic enclosure
- Small body
- 8 actuating planes
AZ17ZI Series:
- Above, however, coding level 'High' according to ISO 14119
Series Features Include (US Standard)
- With individual coding, up to 200 combinations
- Thermoplastic enclosure
- Small body
- Long life
- Double insulated X
- Including cable gland M16 (standard), Option "ST" denotes M12 connector
- Slot sealing plug included
- High level of contact reliability with low voltages and currents
- Not sensitive to dirty conditions by virtue of patented roller system
- 8 actuating planes
- Cut clamp terminals (IDC method) or connector
Need More Information?
- Schmersal AZ17-...I Series Safety Switch with Separate Actuator US Technical Specifications
- Schmersal AZ 16i / AZ 17i / AZM 161i / AZM 170i Safety Switches & Solenoid Interlocks Brochure
- Schmersal AZ 17I Safety Switch Operating Instructions
- Schmersal AZ 17 | AZM 170 Actuator Operating Instructions
- Schmersal Machine Guarding Safety Products US 12th Edition
