101096089
Alt: AZ15/16-B2-1747, AZ 15/16-B2-1747

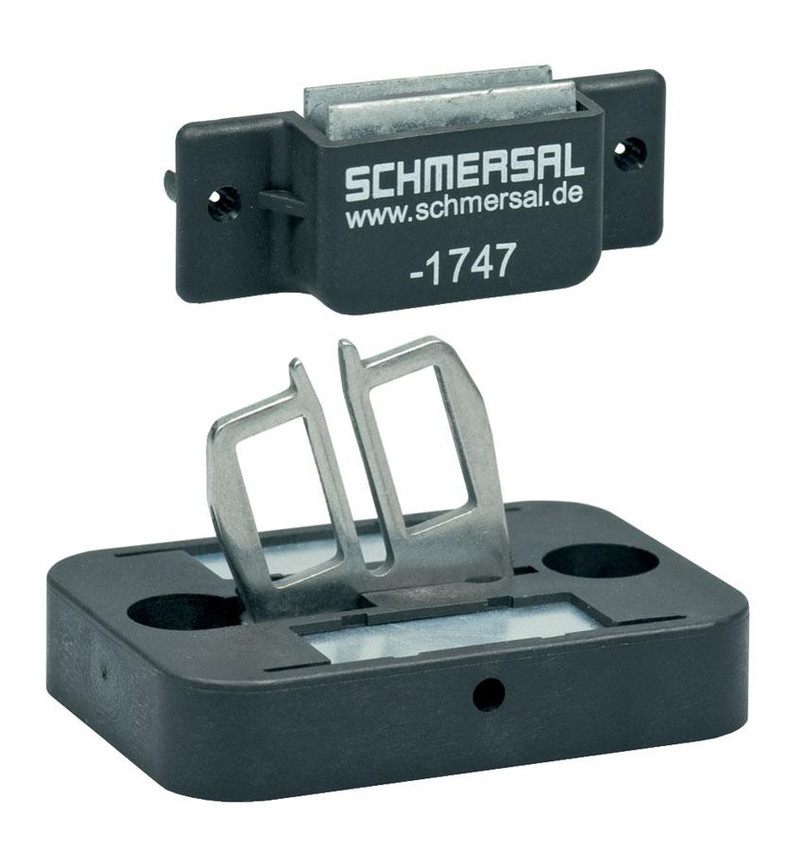

Actuator Retrofit Kit, Flexible, 45mm Min. Actuating Radius In Line with Actuator Plane, 30N Magnetic Latch, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Play-Free Interlocking of Light Guards
- Weight:
- 0.09 LBS
- Minimum Purchase:
- 1 unit
The Schmersal AZ 15/16 actuators and retrofit kits are separately ordered actuators for Schmersal EX-AZ 16 safety switches with separate actuator, which monitor guard doors in Ex Zone 22. Straight, rubber-mounted, and flexible actuators are available, along with retrofit kits that add a magnetic latch, ball latch, or slot seal, making it easy to replace or upgrade the actuator on an existing installation.
Key Features
- Stainless steel (V2A) actuators for Schmersal EX-AZ 16 safety switches
- Straight rigid, straight rubber-mounted, and flexible versions
- Rubber-mounted version damps vibration on the guard device
- Flexible versions for small actuating radii, down to 25mm (AZ 15/16-B6)
- Retrofit kits with 30N magnetic latch, ball latch adjustable to 100N, or slot lip seal with slot cover
- Coding level low according to EN ISO 14119
- Mounting screws not included
