101175203

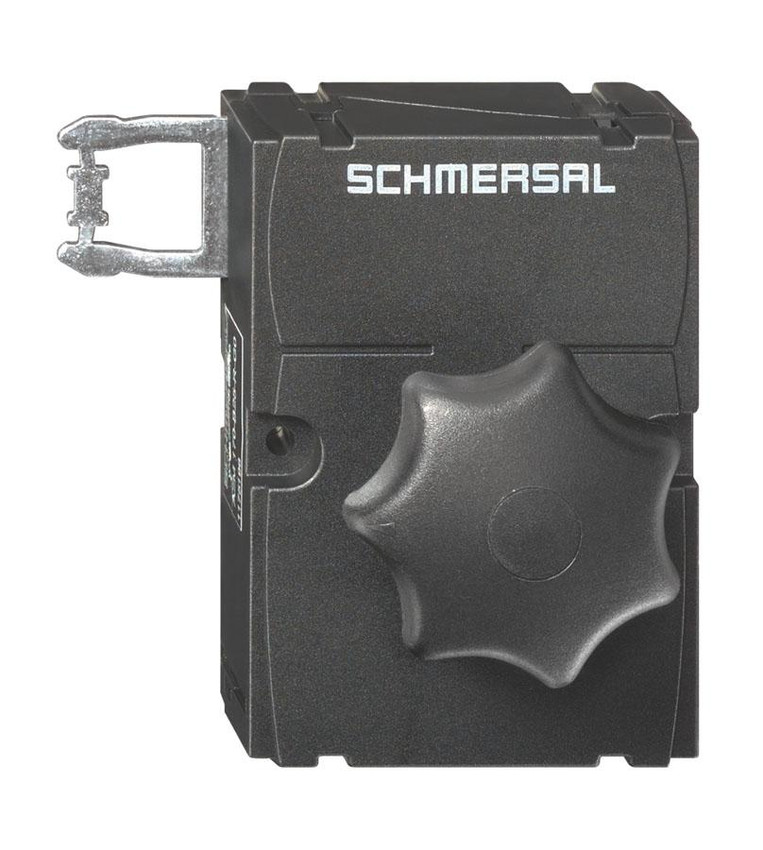

Alt: AZ17-B25-L-G1, BETAETIGER AZ 17-B25-L-G1
$166.00
Safety Switch, Separate Actuator, Simple Mounting, Door Hinge on Left-Hand Side, with Star Grip
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal has a wide range of safety interlock switches with separate actuators:
AZ15 Series:
- Plastic enclosure
- 52mm x 75mm x 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16 Series:
- Thermoplastic enclosure
- 52mm x 90mm 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16ZI Series:
- Above, however, coding level 'High' according to ISO 14119
AZ17 Series:
- Thermoplastic enclosure
- Small body
- 8 actuating planes
AZ17ZI Series:
- Above, however, coding level 'High' according to ISO 14119
Series Features Include (US Standard)
- With Star grip
- Simple mounting
- Ergonomic operation
- No protruding actuator
- Several door-handles available
- No supplementary door-handle required
- Door hinge on left-hand side (View point towards the hazardous area)
- Possibility to mount the own handles using a default square screw (8 mm)
