Schmersal
161083036
Actuator, Straight, Rigid, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, 160mm Min. Actuating Radius, Suited for Sliding Doors, Mounting Screws Not Included
$13.00
101143122
Alt: AZ16ZVK-ST, AZ 16 ZVK-ST
$201.00
Safety Switch, Key Spring, 1NO/1NC
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal has a wide range of safety interlock switches with separate actuators:
AZ15 Series:
- Plastic enclosure
- 52mm x 75mm x 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location

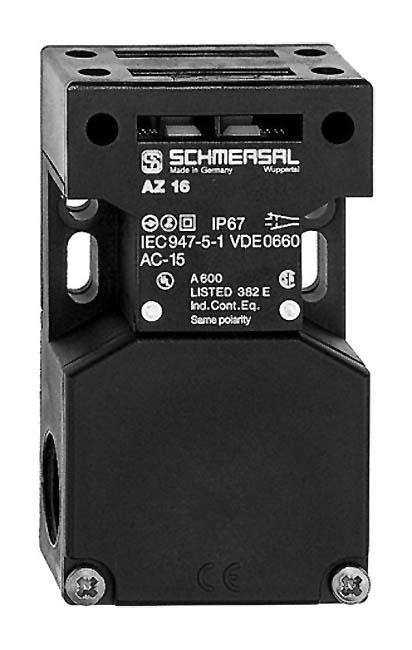

AZ16 Series:
- Thermoplastic enclosure
- 52mm x 90mm 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16ZI Series:
- Above, however, coding level 'High' according to ISO 14119
AZ17 Series:
- Thermoplastic enclosure
- Small body
- 8 actuating planes
AZ17ZI Series:
- Above, however, coding level 'High' according to ISO 14119
Series Features Include:
- Thermoplastic enclosure
- Long life
- Double insulated X
- 3 cable entries M20 (standard US cable entry size is M20, international standard is M16)
- Large wiring compartment
- High level of contact reliability with low voltages and currents
- Not sensitive to dirty conditions by virtue of patented roller system
- Available with LED
- Slotted holes for adjustment, circular holes for location
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Schmersal
101111081
Actuator Retrofit Kit, Straight, Rigid, Ball Latch Adjustable to 100N, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Light to Medium-Weight Guards, Suited for Sliding Doors, Mounting Screws Not Included
$63.00
Schmersal
101137434
Actuator, Flexible, Adjustable to 25mm Min. Actuating Radius (38mm via Wide Edge), In Line or 90° to Actuator Plane, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Mounting Screws Not Included
$40.00
Schmersal
101096089
Actuator Retrofit Kit, Flexible, 45mm Min. Actuating Radius In Line with Actuator Plane, 30N Magnetic Latch, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Play-Free Interlocking of Light Guards
$76.00
Schmersal
101096090
Actuator Retrofit Kit, Flexible, 32mm Min. Actuating Radius at 90° to Actuator Plane, 30N Magnetic Latch, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Play-Free Interlocking of Light Guards, Mounting Screws Not Included
$76.00
Schmersal
101108278
Actuator Retrofit Kit, Straight, Rigid, with Slot Lip Seal and Slot Cover, Protects Against Coarse Dirt, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Suited for Sliding Doors, Mounting Screws Not Included
$63.00
Schmersal
101093553
Actuator Retrofit Kit, Straight, Rigid, 30N Magnetic Latch, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Play-Free Interlocking of Light Guards, Suited for Sliding Doors, Mounting Screws Not Included
$45.00
Schmersal
101137408
Actuator, Straight, Rubber Mounted for Vibration Damping, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, Suited for Sliding Doors, 2Nm Max. Mounting Torque, Mounting Screws Not Included
$37.00
Schmersal
101126794
Actuator Retrofit Kit, Straight, Rigid, Stainless Steel (V2A), for Schmersal EX-AZ 16 Safety Switches, for Interlocking Light, Unguided Guards
$32.00
$76.00
$43.00
$50.00
$36.00
