101164456
Alt: AZ16-12ZVRK-2254, AZ 16-12ZVRK-M20-2254
$145.00
Safety Switch, Key Maintained Upon Insertion1 NO & 2 NC, Light (1-2 pounds) retention force
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal has a wide range of safety interlock switches with separate actuators:
AZ15 Series:
- Plastic enclosure
- 52mm x 75mm x 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location

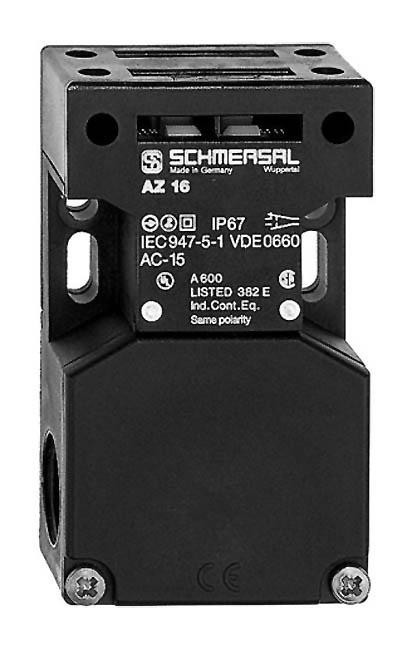

AZ16 Series:
- Thermoplastic enclosure
- 52mm x 90mm 30mm
- Large wiring compartment
- Slotted holes for adjustment, circular holes for location
AZ16ZI Series:
- Above, however, coding level 'High' according to ISO 14119
AZ17 Series:
- Thermoplastic enclosure
- Small body
- 8 actuating planes
AZ17ZI Series:
- Above, however, coding level 'High' according to ISO 14119
Series Features Include:
- Thermoplastic enclosure
- Long life
- Double insulated X
- 3 cable entries M20 (standard US cable entry size is M20, international standard is M16)
- Large wiring compartment
- High level of contact reliability with low voltages and currents
- Not sensitive to dirty conditions by virtue of patented roller system
- Available with LED
- Slotted holes for adjustment, circular holes for location
